Hiab X-HiDuo 298 E-7 for the company operating in supply and installation of steel structures

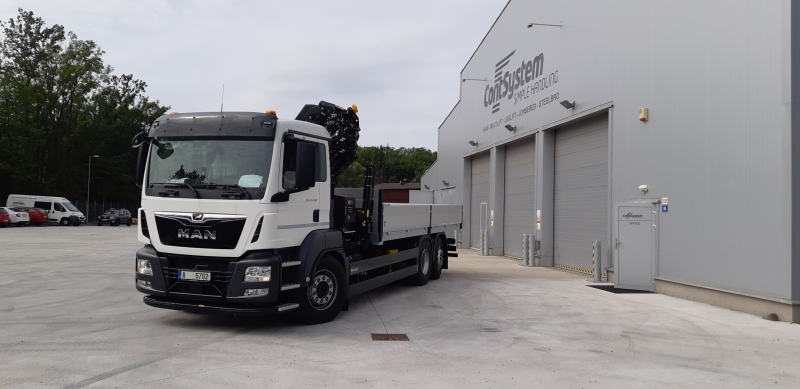

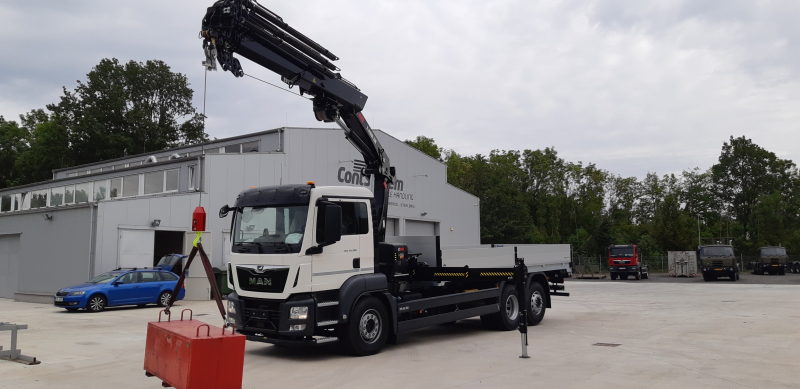

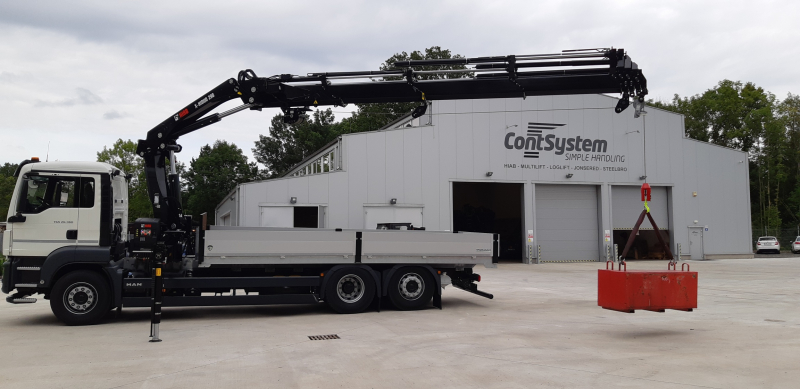

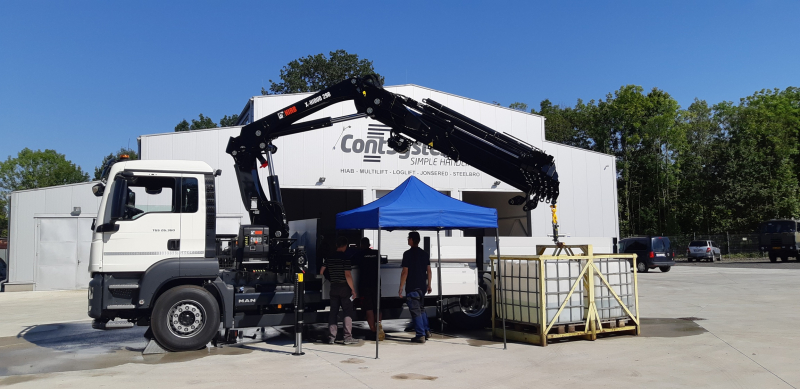

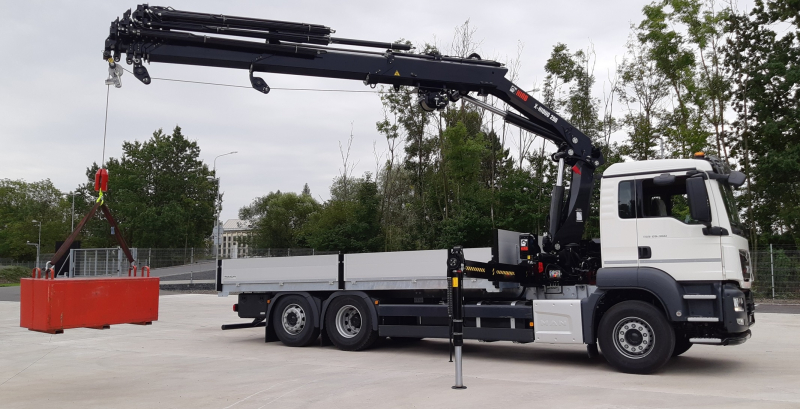

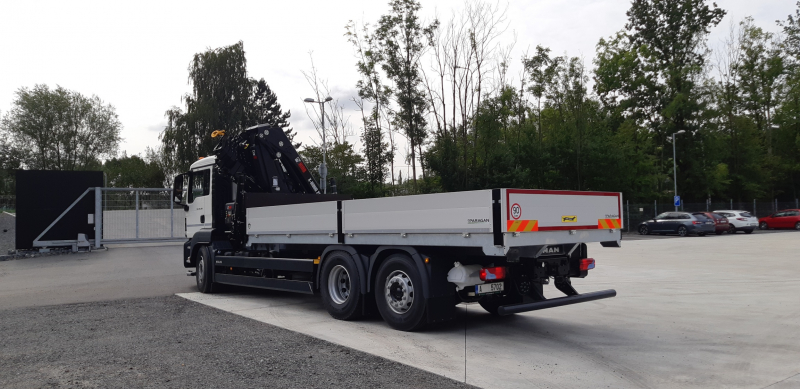

Just handed-over! New remote-controlled hydraulic loader crane on MAN chassis with seven hydraulic extensions, 214 kNm lifting capacity and 18,6 meters hydraulic reach with a Hiab winch equipped with two pulleys and a 49-meter-long rope (Ø10 mm) offers a versatile solution not only for a company operating in supply and assembly of metal structures.

CONTSYSTEM implemented a complete delivery of the vehicle, including the installation and commissioning of the crane and winch.

Basic technical specification:

• Control system: SPACE 4
• Control unit: XS Drive, 6 functions
• Lifting capacity: 214 kNm
• Working pressure: 32,6 MPa
• Crane weight: 3 580 kg
• Hydraulic oil tank 200 l
• Oil pump SAP84R

The crane is fitted with a full range of safety and production-boosting functions, such as Automatic duty control (ADC), Automatic oil distribution (ADO), Automatic speed control (ASC), Boom deployment assistant (BDA), Overload protection (OLP), VSL Variable etc.

.................

More about VSL function:
