Multilift Ultima 14S.56 for waste management company

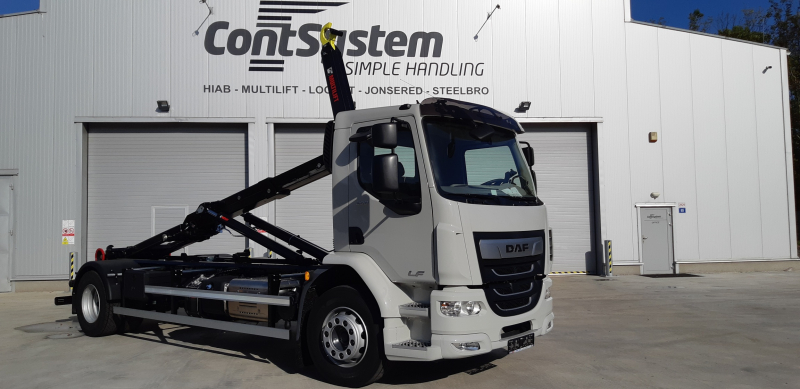

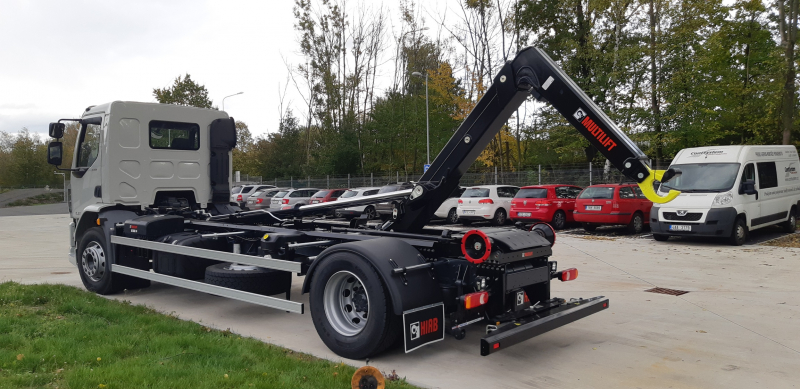

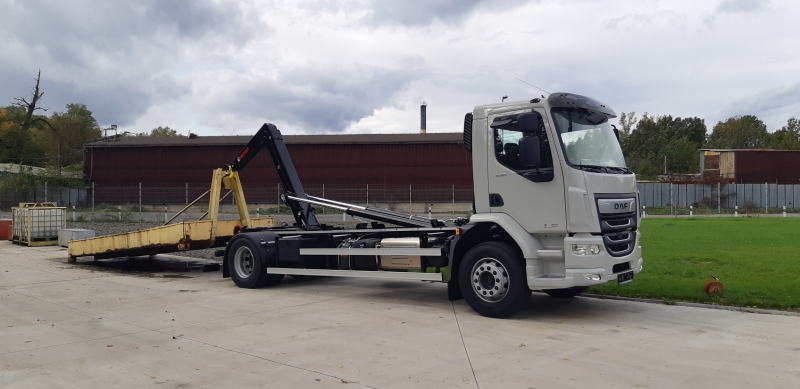

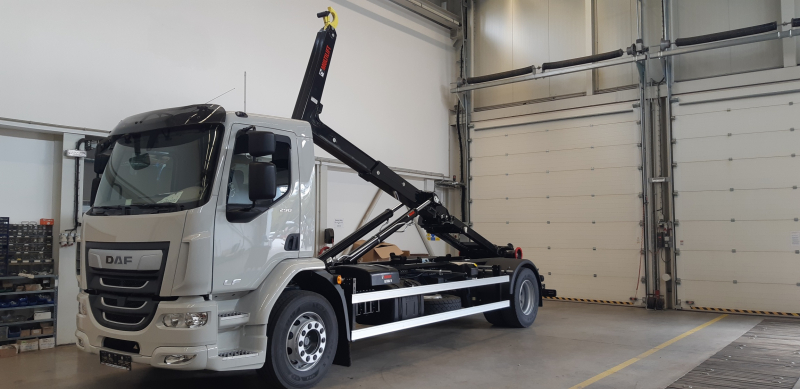

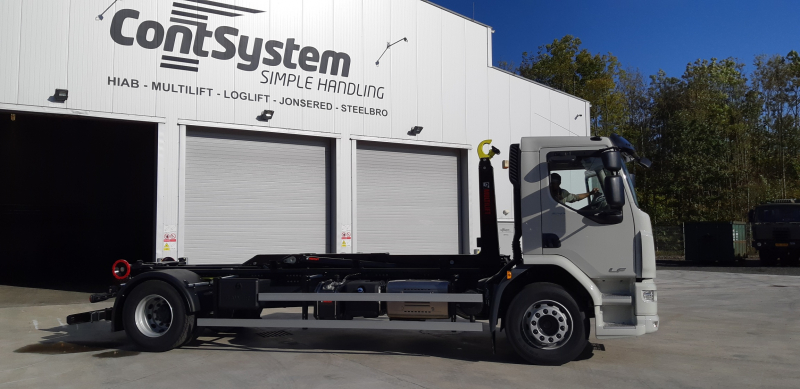

We have just handed over the new hooklift  Multilift ULTIMA mounted on DAF chassis to the company specialized in waste management.

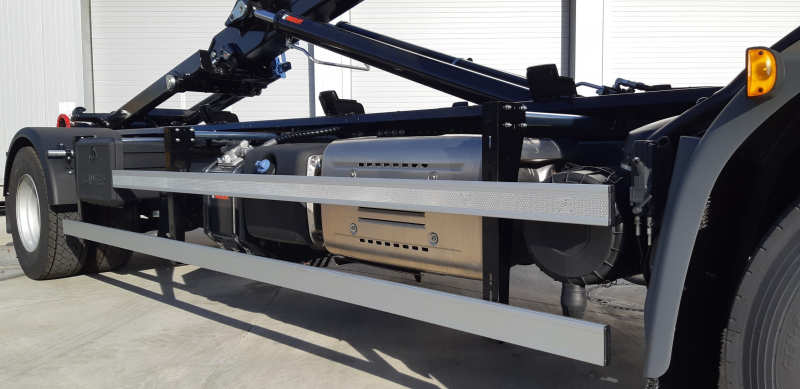

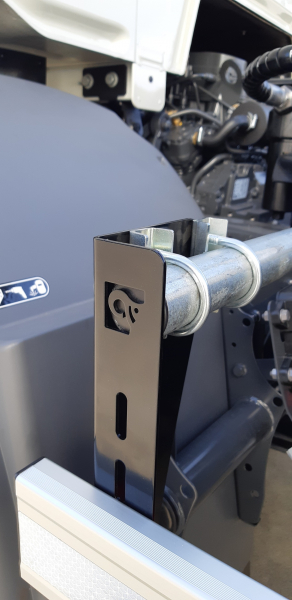

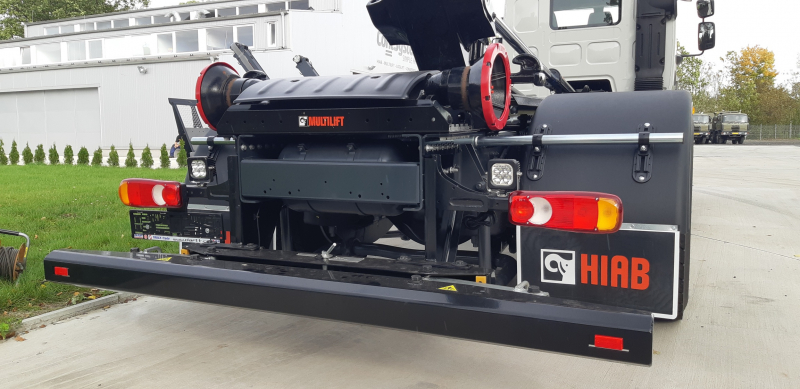

Contsystem`s delivery included: chassis lenght shortening, delivery and mounting of the hooklift on the chassis and setting-up all the functions, delivery and mounting of side protections, underrun bar, toolbox, water tank, delivery and assembly of four hooks for handling special containers and delivery and connections of two working LED lights.

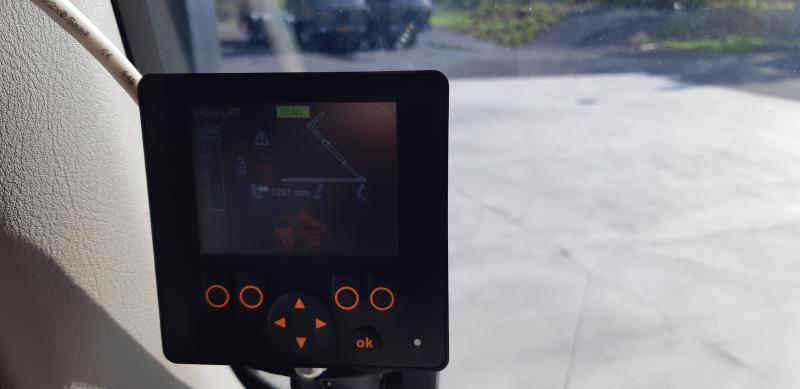

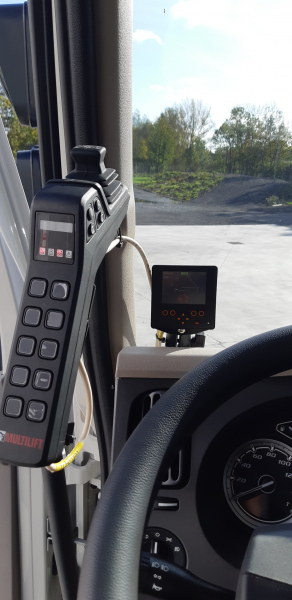

Multilift UTLIMA 14S.56 hooklift is controlled by a joystick from the cab (plus an emergency control). It is equipped with built-in diagnostics and a basic display for monitoring diagnostic messages and with the possibility of setting a semi-automatic hook stop.

Multilift UTLIMA 14S.56 is equipped with a number of additional functions (friction relief, automatic sequence control, short container loading function) and safety functions for safe manipulation.

Basic technical parameters of Multilift ULTIMA 14S.56:

• Load capacity: 14 tons
• Container length (inner): 4.5 - 6.6 m
• Tilt angle: 52 °
• Max. working pressure: 30 MPa
• Equipment length: 5 308 mm
• Hooklift weight: 1,860 kg
• Hydraulic tank 100l
• Hydraulic pump SAP-064
