Unique Multilift ULTIMA with sophisticated camera system and advanced dashboard display

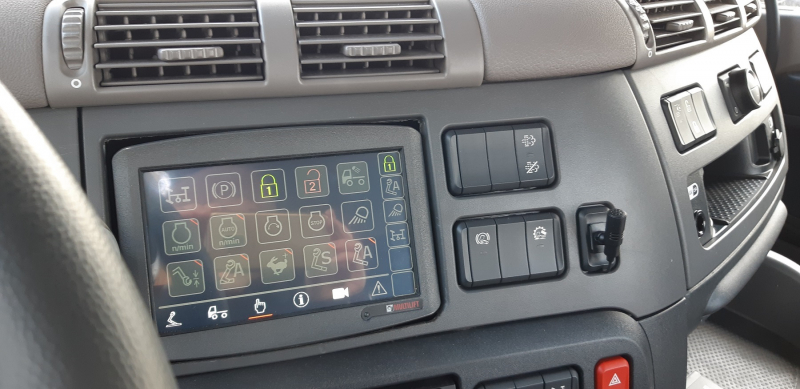

We have just delivered the first hooklift Multilift ULTIMA equipped with a sophisticated camera and advanced display system. It is also the first delivery with such hi-tech equippement to the Czech market. Three cameras that switch automatically according to the loading/unloading cycle in combination with an integrated advanced display which is used to monitor the entire cycle from the cab and to display additional information (activated functions, weighing system, diagnostic messages) make this device a timeless and user-friendly machine.

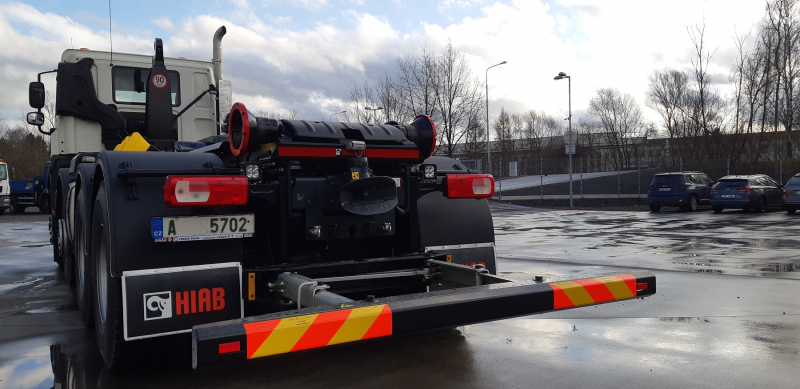

Contsystem`s delivery included: chassis lenght shortening, delivery and mounting of the hooklift on the chassis and setting-up all the functions, delivery and mounting of side protections, rear mechanically extendable bumper including wiring and sensors, installation and connection of all the cameras and displays and other accessories (plastic water tank, tool box, LED work lights).

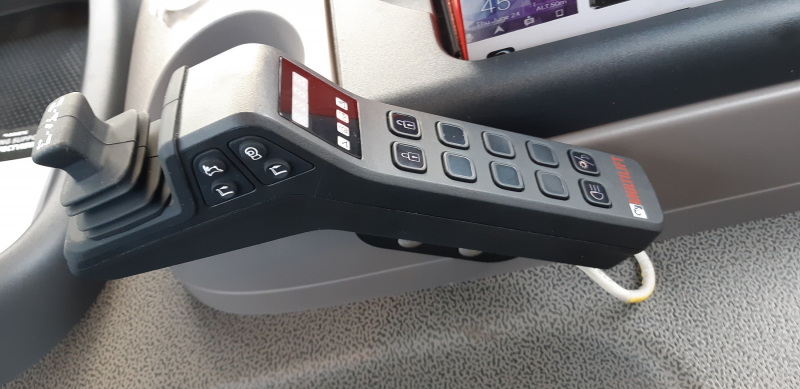

Multilift UTLIMA 21Z.56 is controlled by a joystick from the cab (plus an emergency control). It is also equipped with a number of standard functions (hour meter, rear hydraulic locks, acoustic signaling, NOT-AUS STOP button, etc.) and additional functions (automatic sequence, short container handling, weighing system etc.).
Basic technical parameters of Multilift ULTIMA 21Z.56:
- Load capacity: 21 tons
- Container length (inner): 3.5 - 6.6 m
- Tilt angle: 49°
- Max. working pressure: 30 MPa
- Equipment length: 5 610 mm
- Hooklift weight: 2 770 kg
- Hydraulic tank 150l
- Hydraulic pump SAP-084
