New multifunctional SCANIA with HIAB crane for Technical Services in Olomouc city
9.10.2020

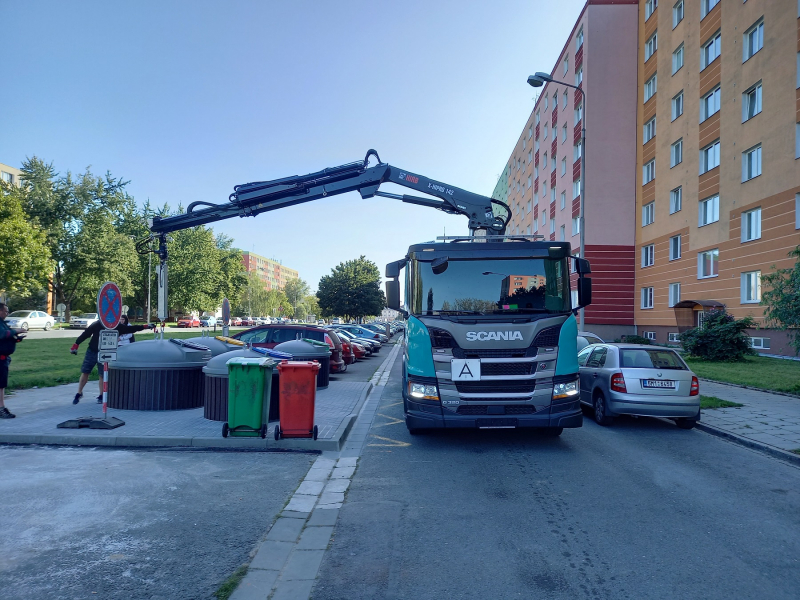

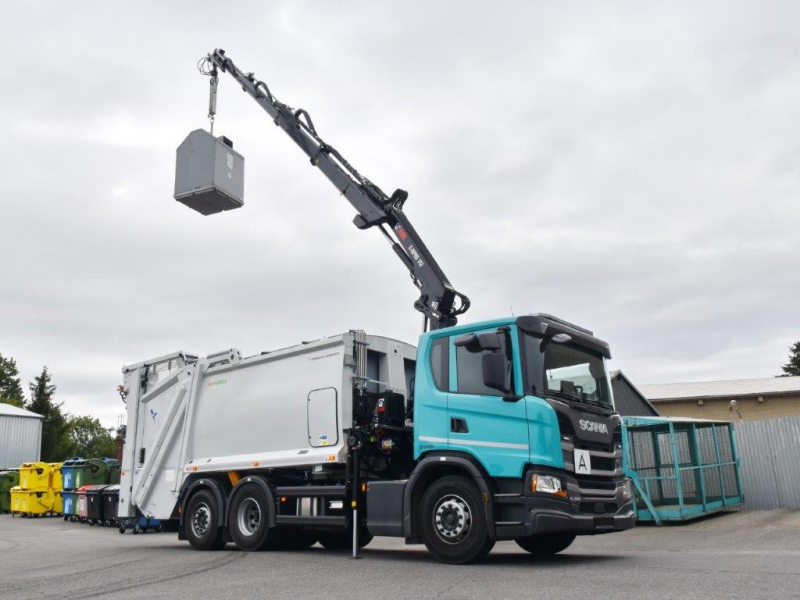

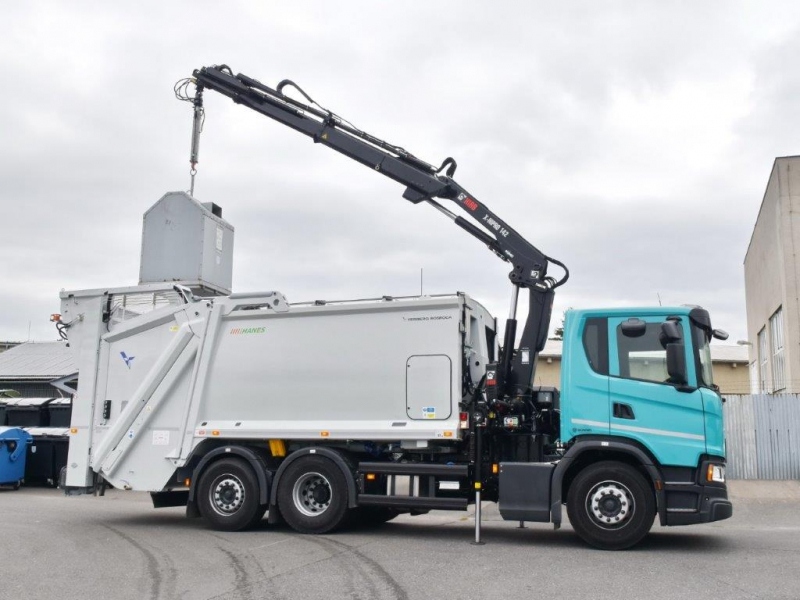

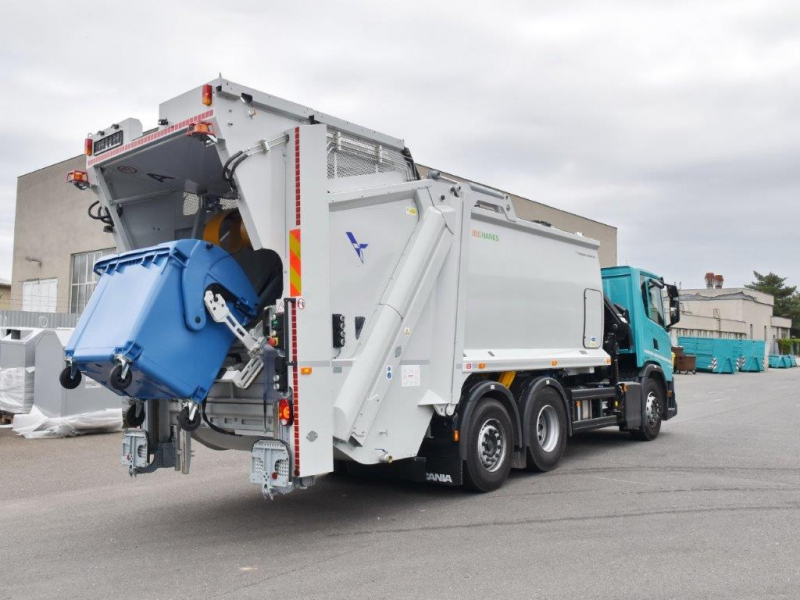

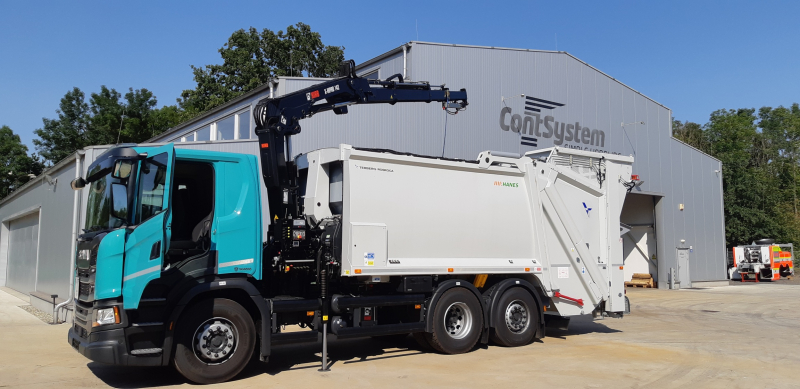

We are showing the hydraulic loading crane Hiab X-HiPro 142 E-3 with the CTC function, which we delivered to the Technical Services of the City of Olomouc on a SCANIA G 320 6x2 equipped with the TERBERG ROS ROCA OL17W HTC superstructure. Contsystem delivered and installed the Hiab including all the connection, recovery and adjustment and made the necessary stability test. The delivery of the vehicle with the Terberg superstructure was carried out by the HANES company.
Automation of the loading process thanks to advanced electronics

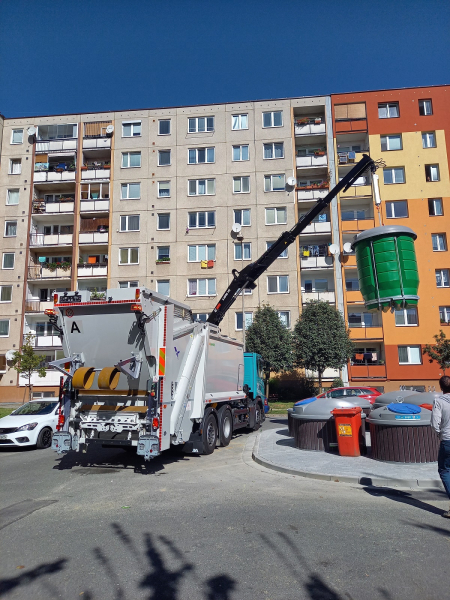

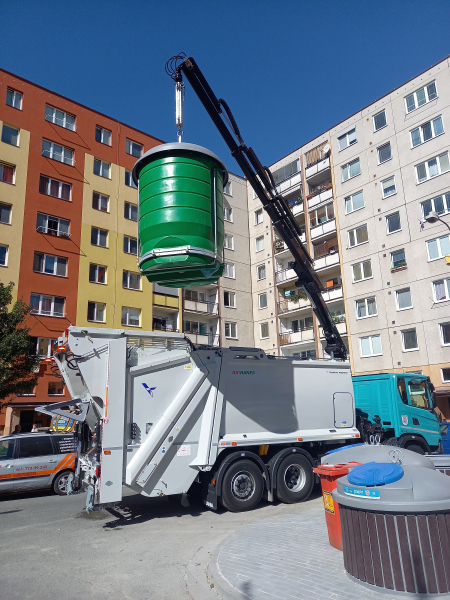

Thanks to an advanced communication protocol, the superstructure, hydraulic crane and chassis greatly automate, simplify and speed up the process of loading large-volume containers thanks to the automatic detection function of the hydraulic crane in the loading area, which automatically puts the press to the basic position and then automatically starts a continuous press cycle to quickly process the filled loading tube.
Basic technical specifications of the Hiab X-HiPro 142 E-3 crane:

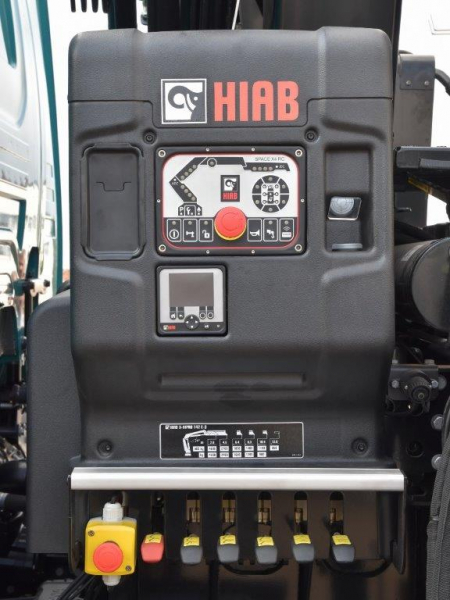

Control system: SPACE X4
Control unit: XS Drive remote control (keyboard control, 6 functions)
Number of hydraulic extensions: 3
The capacity (standard): 108 kNm

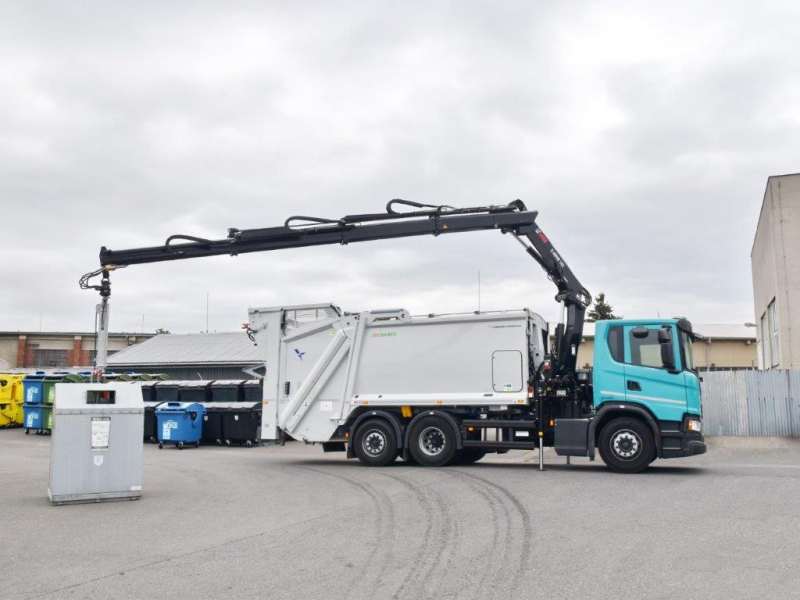

The outreach (standard): 10,5 meters
Slewing angle: 415˚
Working pressure: 30,9 MPa
Crane weight without stabilizers: 1 830 kg
Hydraulic tank: 100l
Hydraulic pump: SC 084

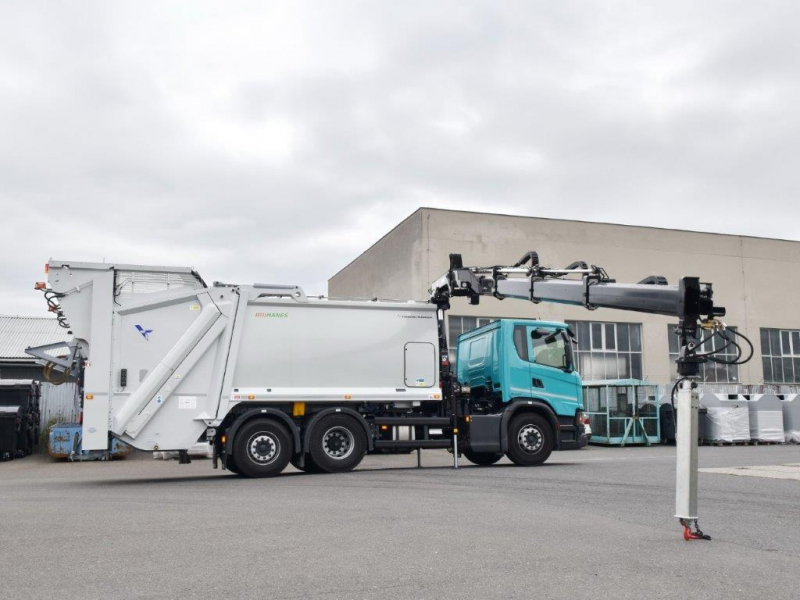

The crane has front supports with a gauge of 5,5 m
The useful safety features of HIAB cranes are designed to activate smoothly and automatically without the need for operator intervention and ensure efficient task completion. Innovative safety standards are built into every HIAB crane.
See how OZO Ostrava, for example, uses the unique CTC (Crane Tip Control) function on a Hiab crane:
