New Multilift ULTIMA 21 Z59 for metal-waste handling Czech company

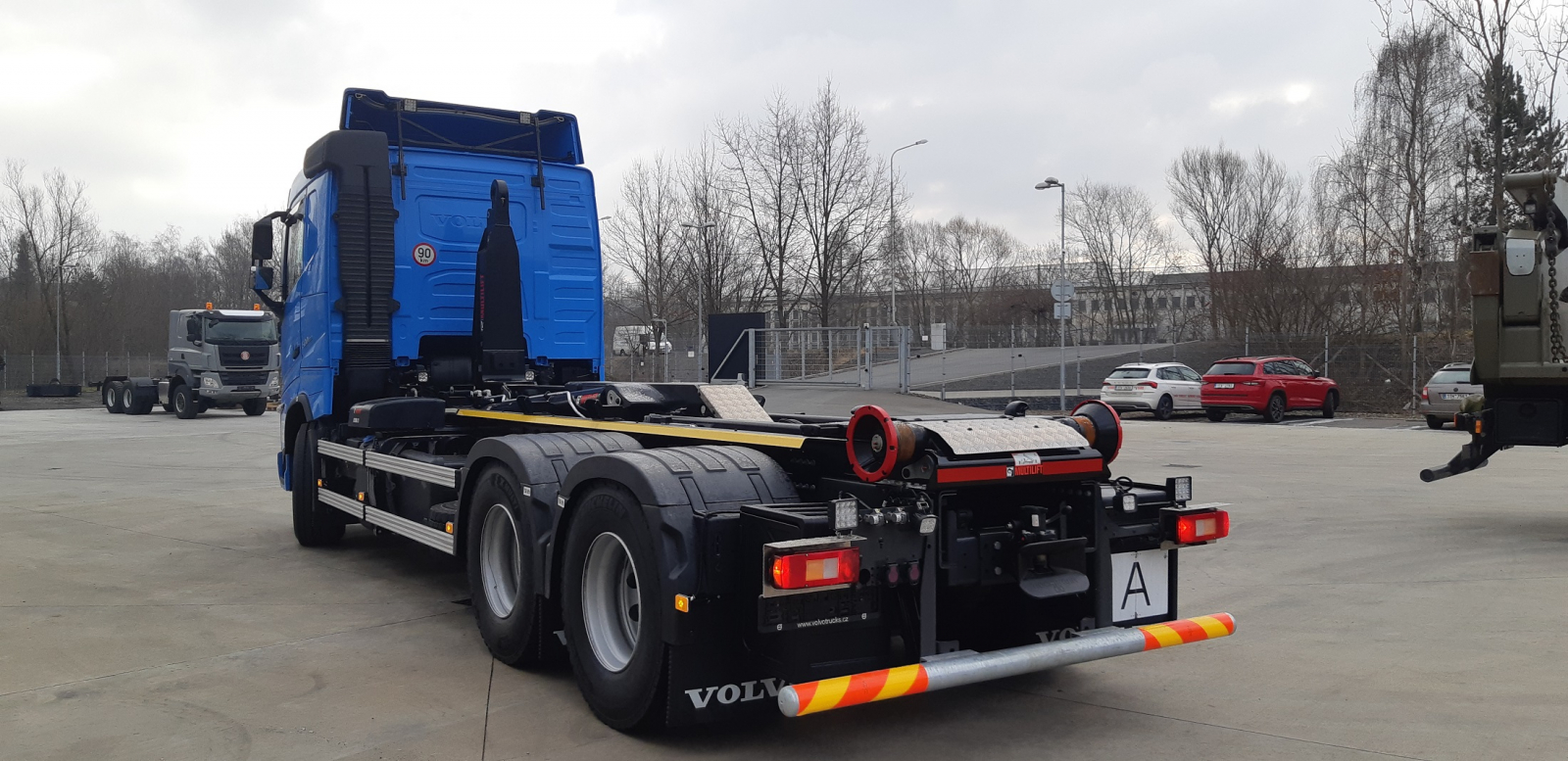

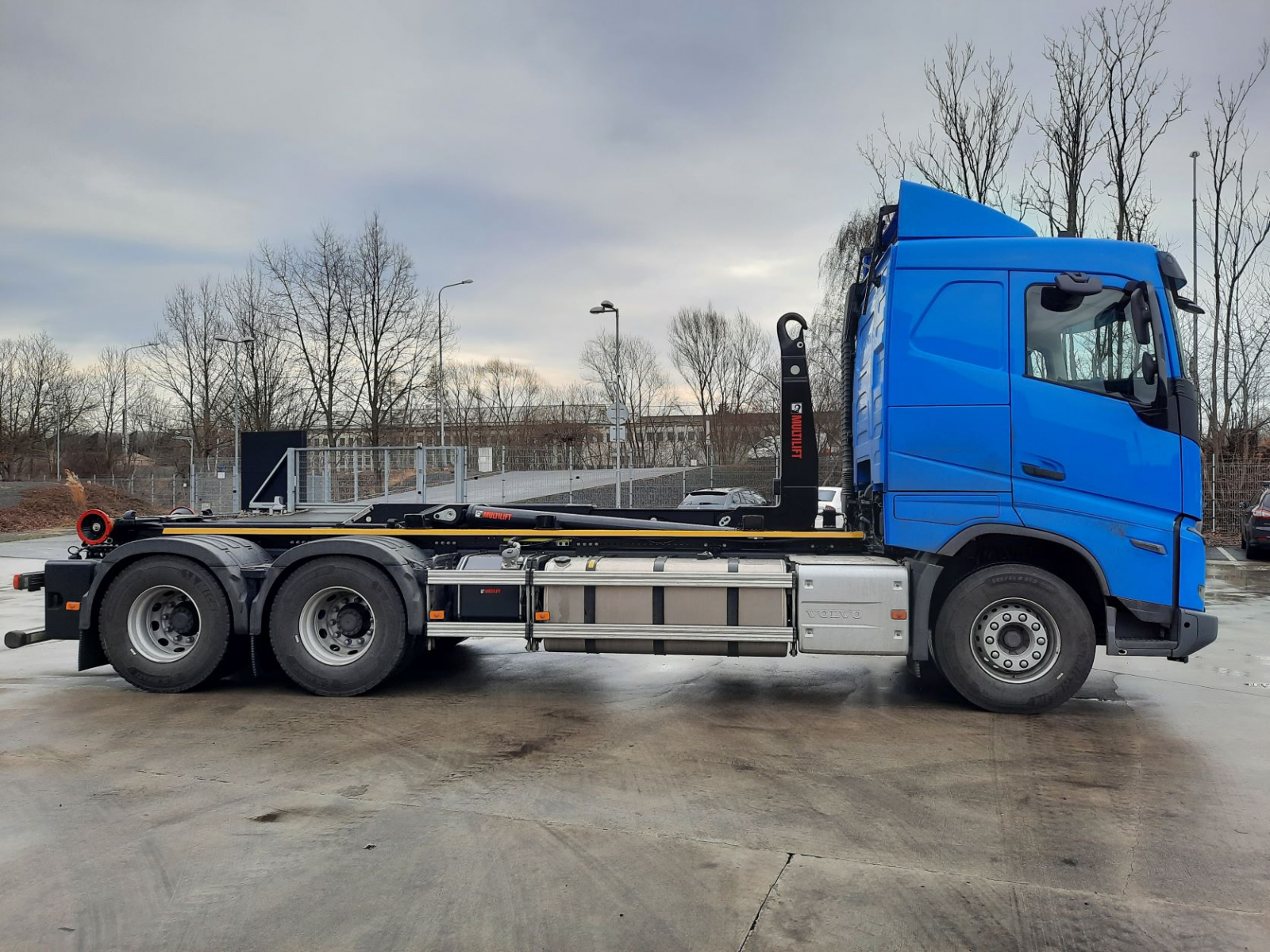

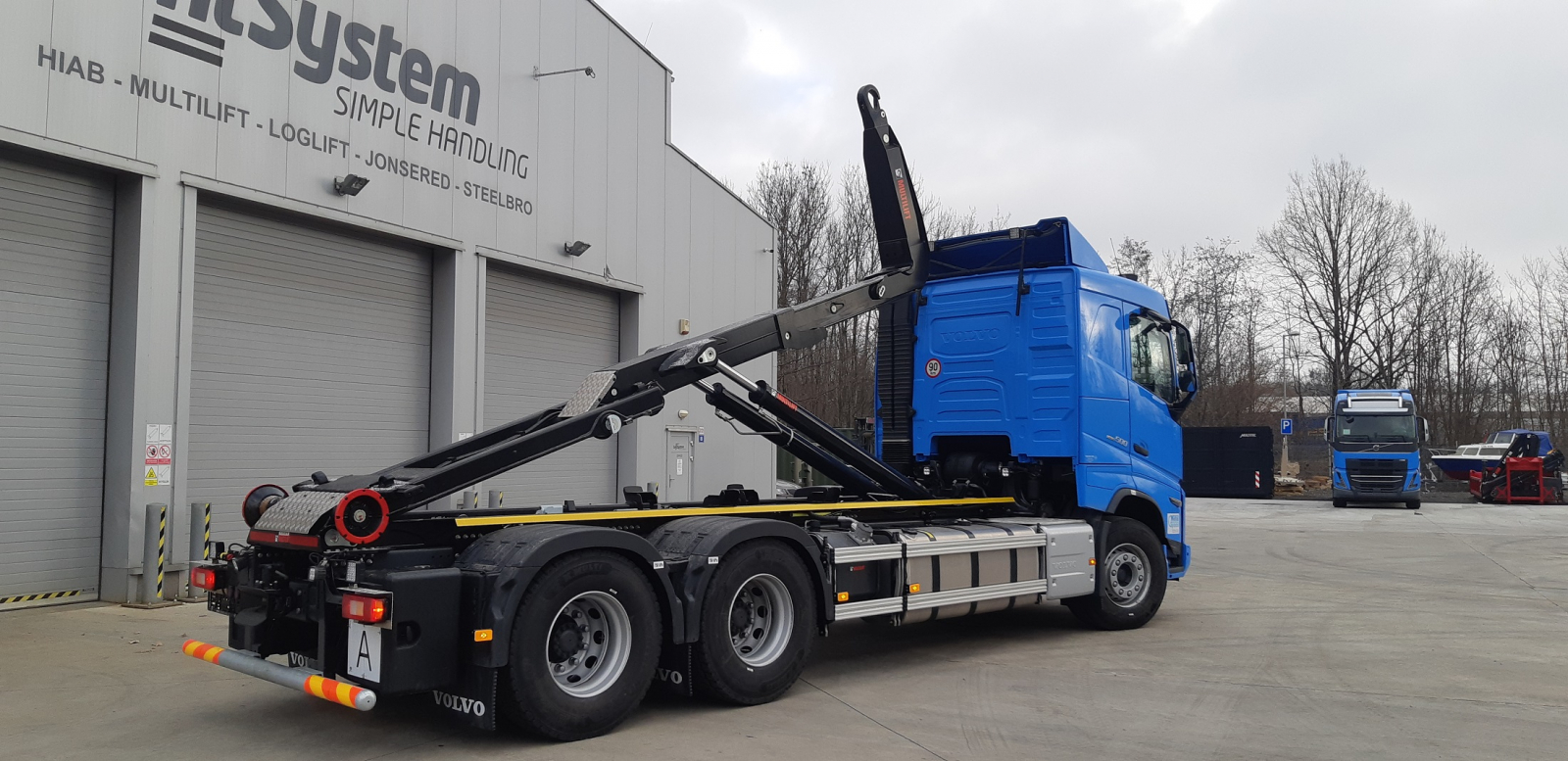

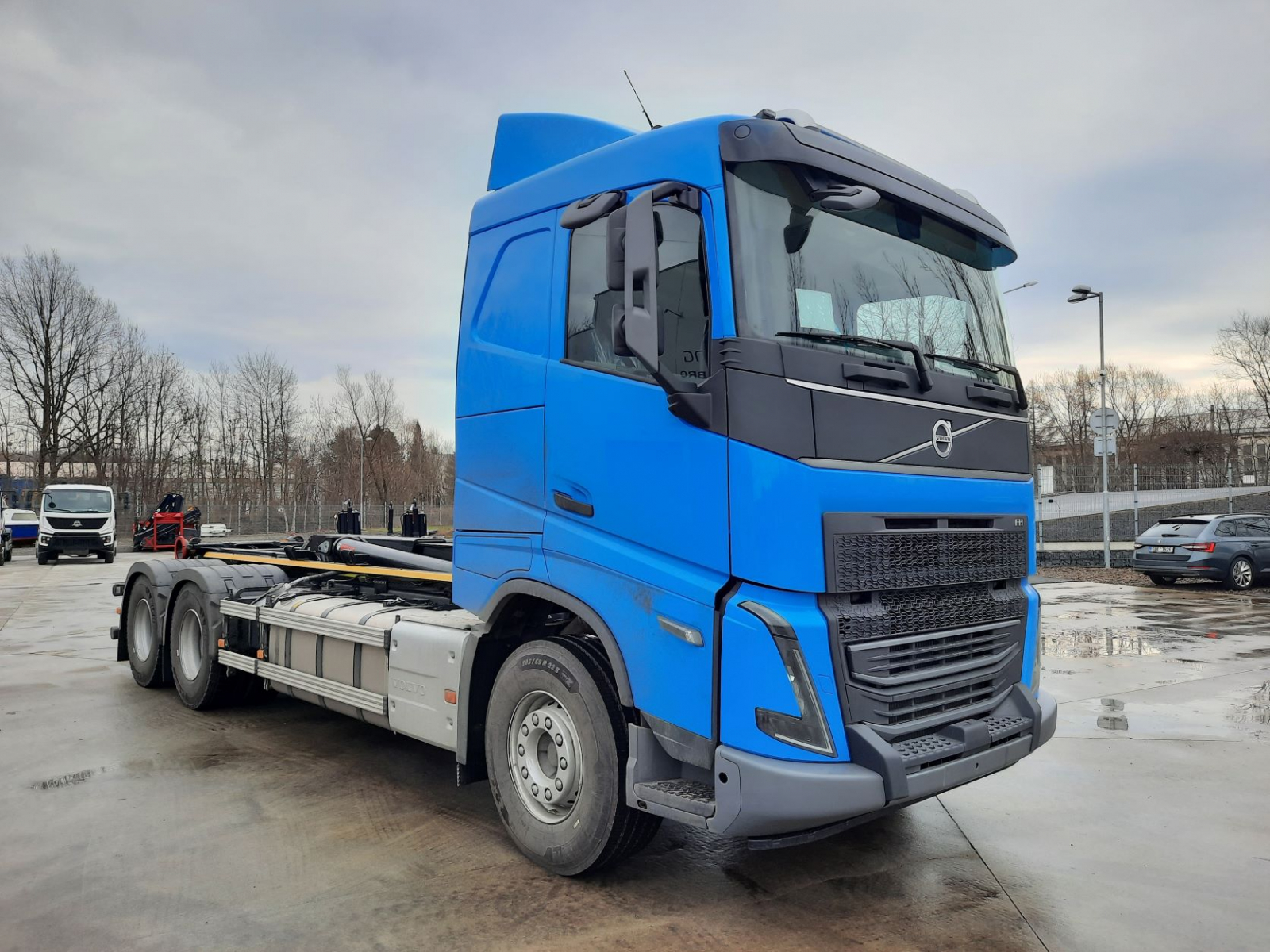

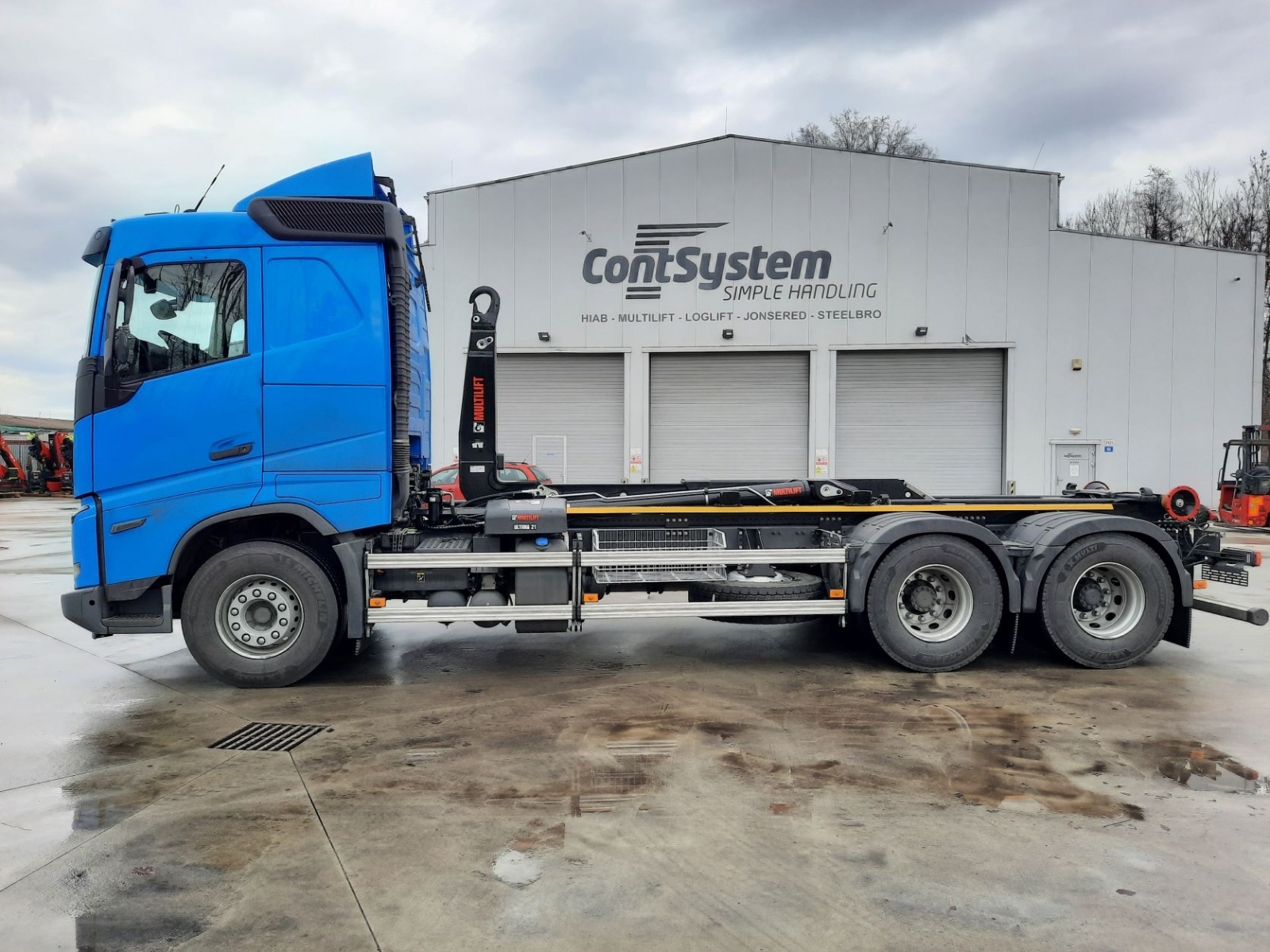

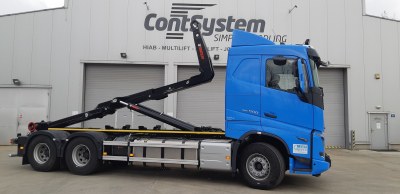

For the Czech company METAL SPEED which operates in a field of transportation of bulk materials, waste removal  and rental of containers we delivered a 21 ton-hooklift MULTILIFT Ultima on a VOLVO chassis.

This new MULTILIFT Ultima 21Z.59 is controlled by a joystick from the vehicle cabin (two-speed control, 10 m cable) with the possibility of external emergency control. It is also equipped with a number of standard functions and built-in diagnostics indicating defective parts that were caused by mechanical damage.

Additional functions: Friction reduction and Automatic sequential control

Basic technical parameters of Multilift ULTIMA 21Z.59:

• Load capacity: 21 tons
• This type of hooklift is designed for containers with an internal length of: 3.8 - 7 m
• Tilting angle: 52 °
• Max. working pressure: 30 MPa
• Max. distance of the hook from the axis of the rollers: 5880 mm
• Installation height: 250 mm
• Hooklift weight: 2810 kg
• Hydraulic tank 150l
• Hydraulic piston pump SAP-084

…..

MULTILIFT Ultima hooklifts represent an innovated model line of hooklifts with a load capacity from 14 to 30 tons. They feature a number of intelligent functions for maximum safety of the operator and his surroundings, timeless control options based on the innovative Hiab uControl platform and a unique system of cameras and displays.
