New MULTILIFT Ultima 21Z.61 to a company offering comprehensive services in waste management
29.3.2023

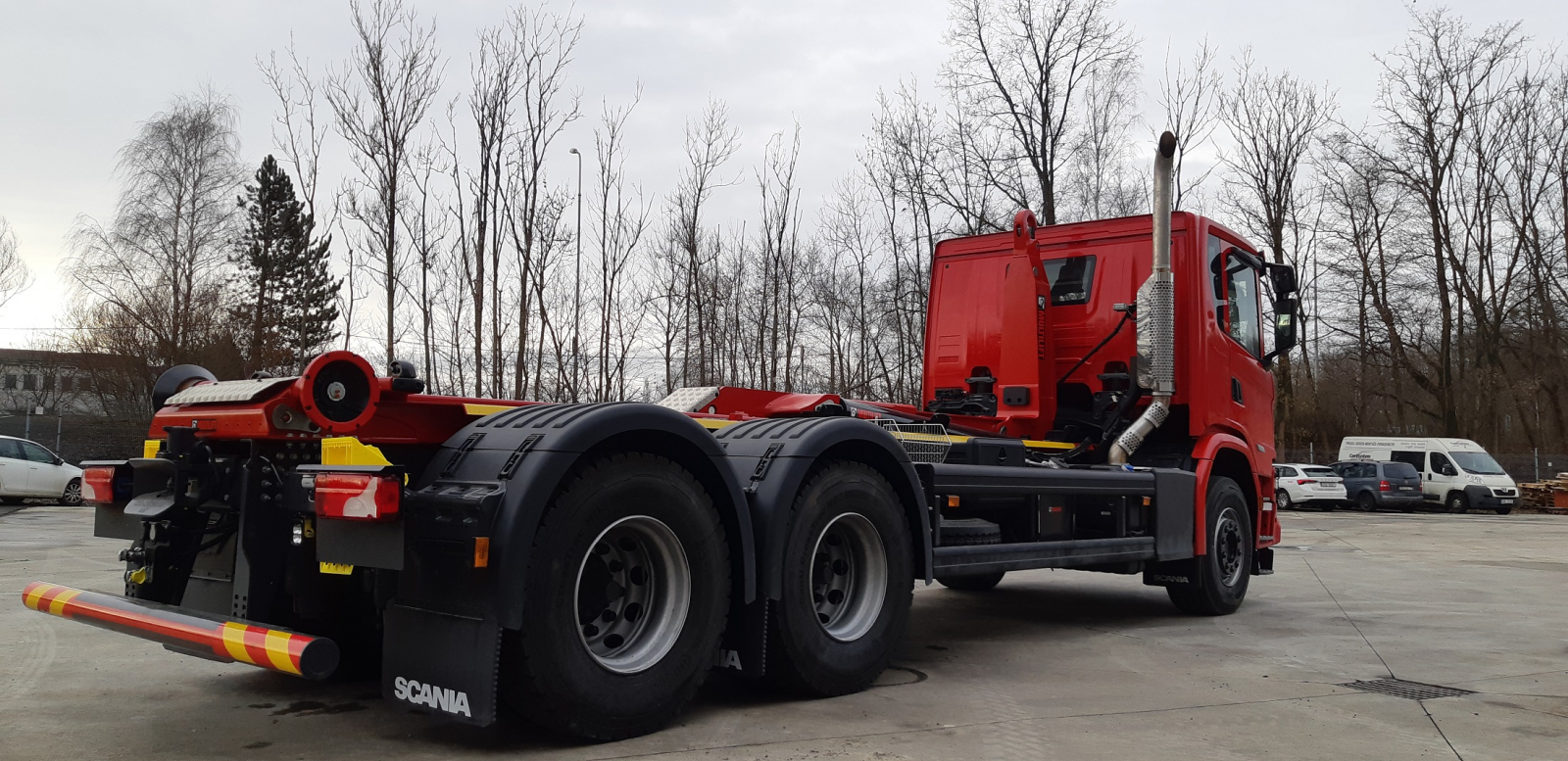

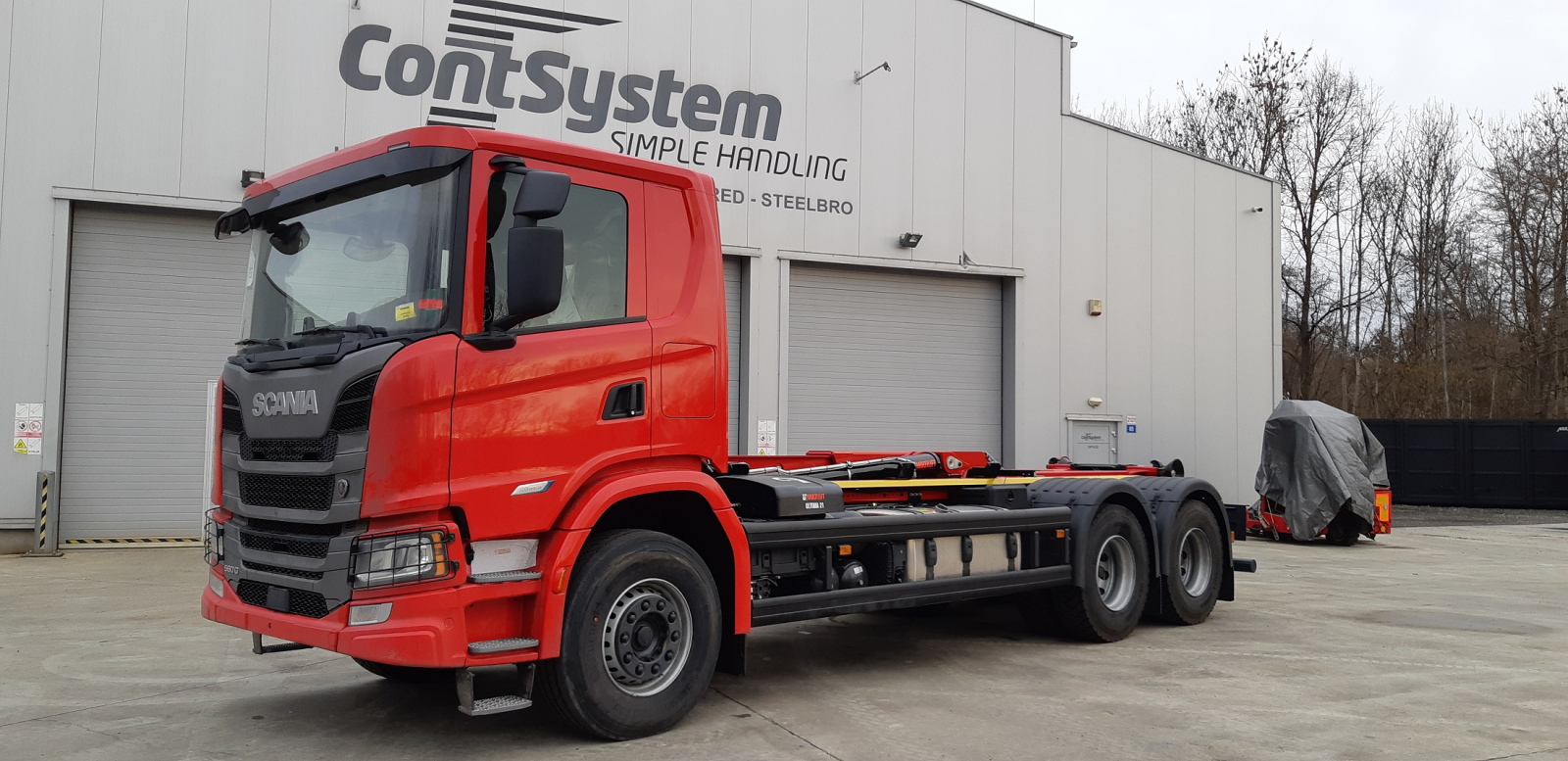

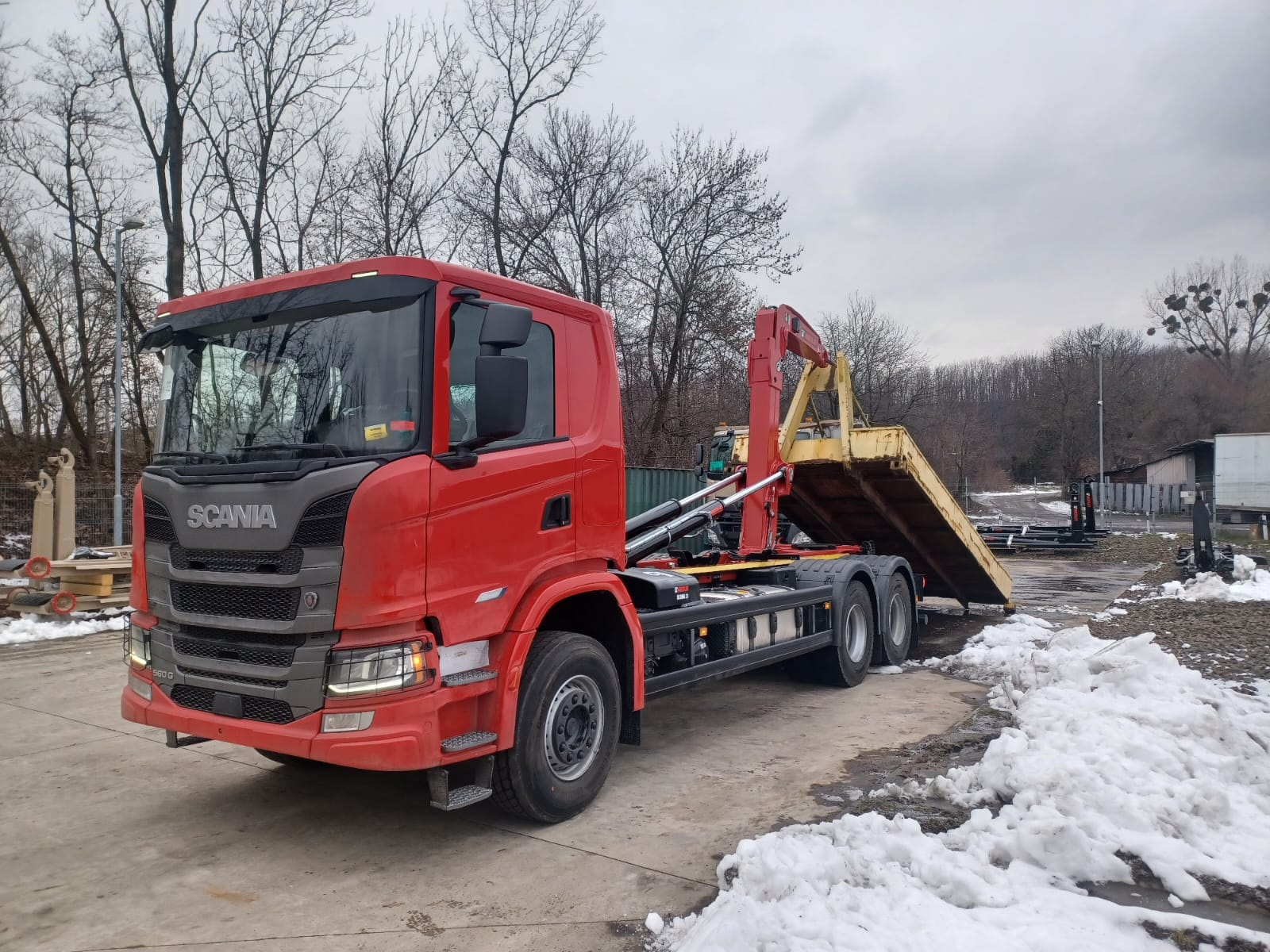

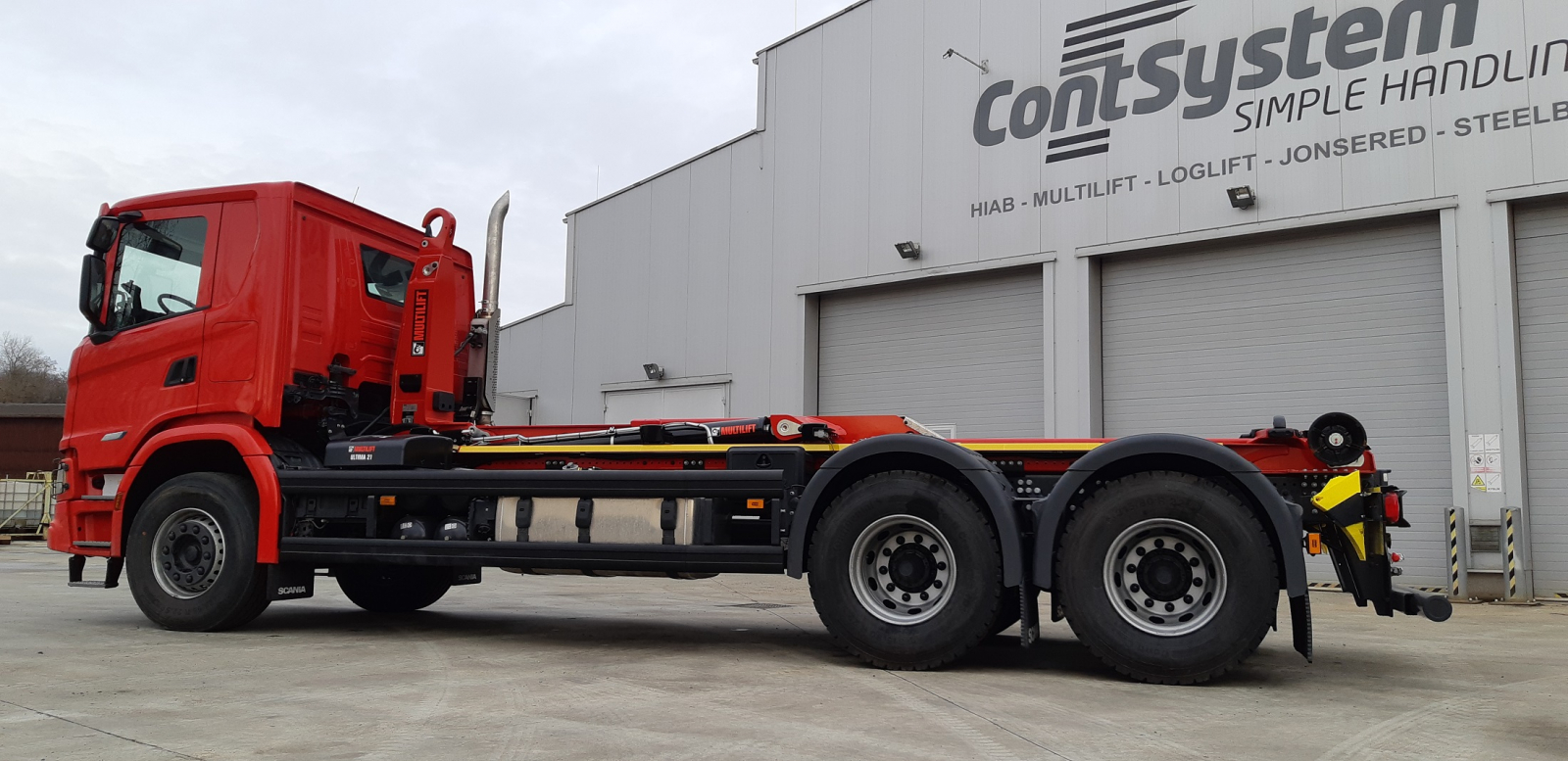

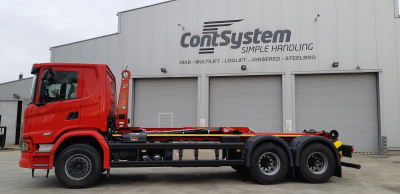

CONTSYSTEM company handed over a new SCANIA vehicle with a MULTILIFT Ultima 21Z.61 hooklift to a company offering comprehensive services in waste management.
MULTILIFT Ultima 21Z.61 hooklift with a capacity of 21 t with a hook height of 1,570 mm is equipped with many automatic functions that speed up the loading cycle, increase safety and simplify the handling with the load.
Here is the list:
- Acoustic signaling when manipulating
- Pneumatically operated hook latch
- Advanced display in the vehicle cabin
- Safe-speed, end-of moving damping
- Fast speed, fast tipping
- Automatic sequence control
- Friction relief
- Automatic trailer operation
- Advanced display for diagnostics, weighing, additional function controling and hooklift assitance
- Z-optimized use
- Remote control and emergency manual control

Basic technical data of MULTILIFT Ultima 21Z.61:
- Capacity 21 tons
- Internal container length 4.1 – 7.1 m
- Tilting angle 52°
- Max. working pressure 30 MPa
- Hooklift weight 2,810 kg
- Installation height 250 mm
- Max. hookarm distance from roll axis 6,110 mm
- Horizontal displacement 1,100 mm + 1,300 mm
