HIAB X-HIDUO 228 E-5 hydraulic loader crane for handling roofing material

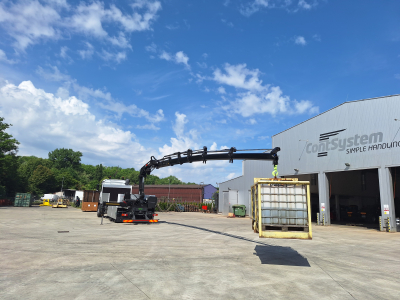

Introducing the newly delivered HIAB X-HIDUO 228 E-5 hydraulic crane with five hydraulic extensions mounted on a Mercedes-Benz chassis. The lifting moment reaches 17.3 tm. Thanks to five hydraulic extensions, the crane has a basic working range from 3.6 to 15 m. Remote control enables the crane operator to be close to the load and therefore has a perfect overview of the loading/unloading process. The customer will use it to load gutters, metal roofing and plumbing elements for roof systems. The crane is also equipped with an FHR 5.5 LH rotator. The vehicle includes a flatbed body.

Hydraulic loader crane HIAB X-HIDUO 228 E-5

• Control system: SPACEevo
• Control unit: remote control XS Drive with 6 functions (using the keyboard) and emergency control using levers on the switchboard
• Support span: 6.8 m
• At 3.6 meters, the crane has a capacity of 5,300 kg and at 15 meters it will lift a load of 1,060 kg
• Angle of rotation: 415 °
• Working pressure: 32.9 MPa
• The crane has a hydraulic outlet at the end of the arm for the rotator and attachments

Electronic equipment - safety functions of the HIAB crane:

VSL variabil, ADC, OLP, ADO, ASC, CWI, Oound and visual signaling of unfolded stabilizer legs
