HIAB X-HIDUO 228 B-3 hydraulic loader crane for the construction company

HIAB X-HIDUO 228 B-3 hydraulic loader crane for the construction company

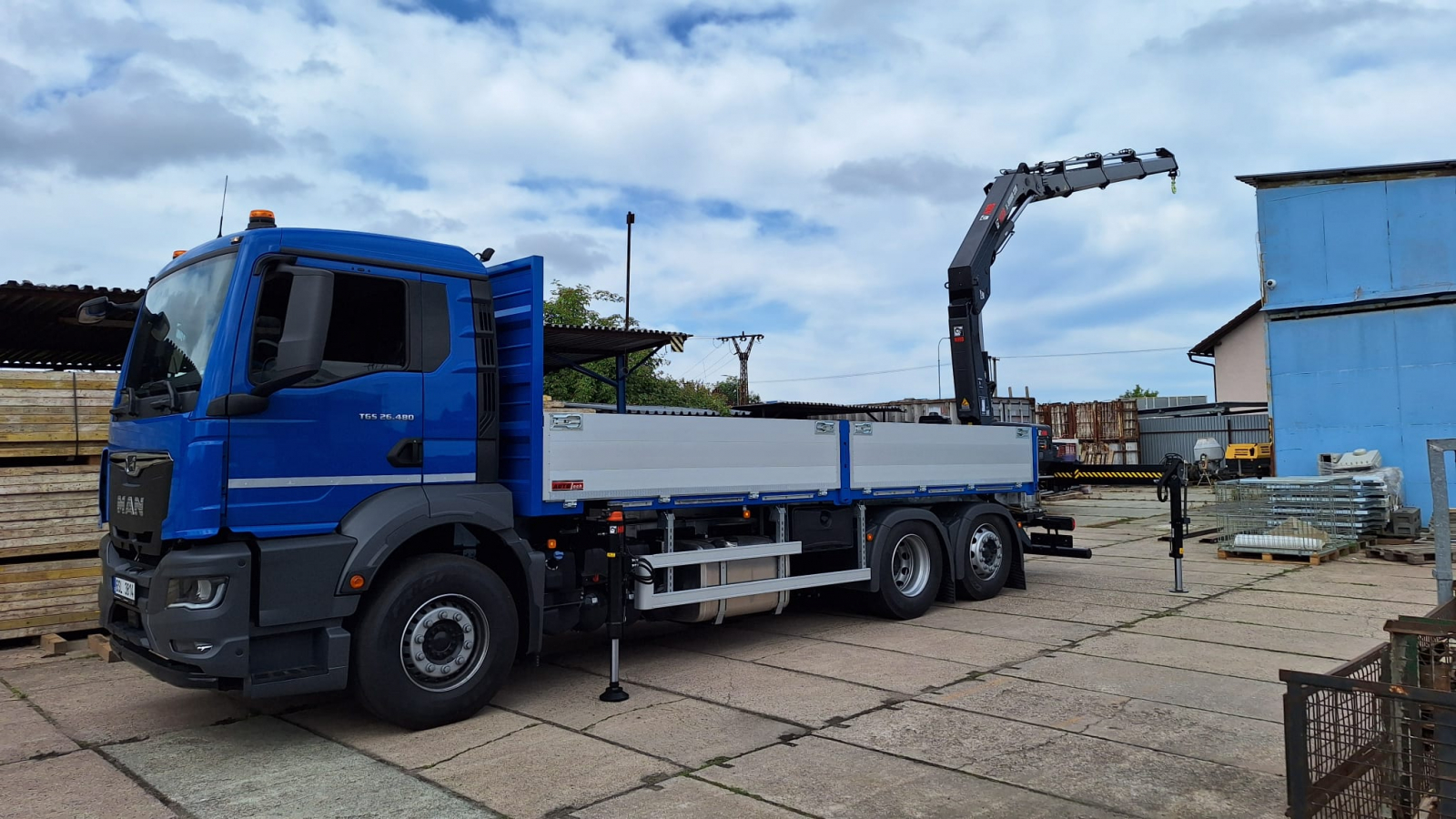

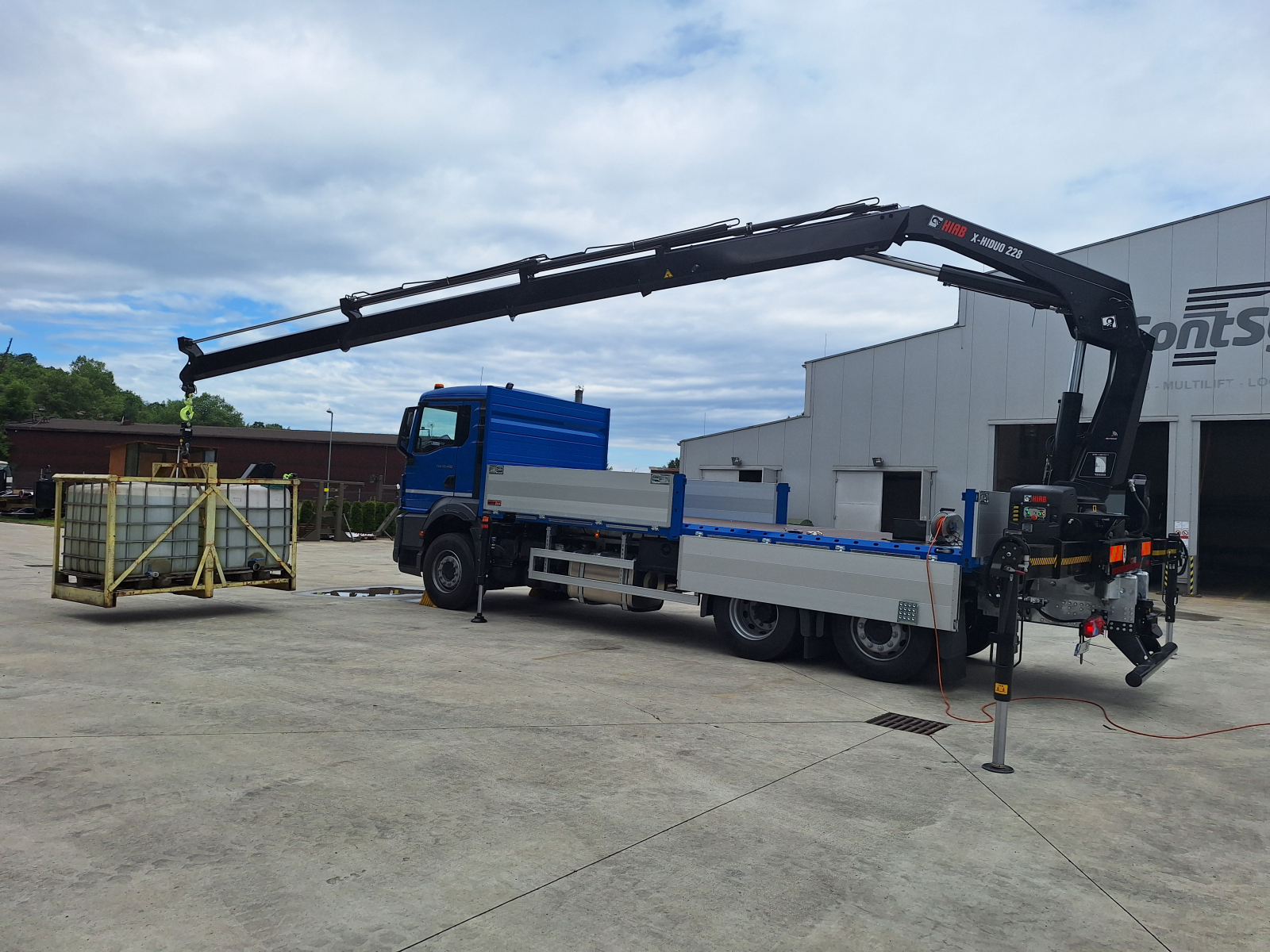

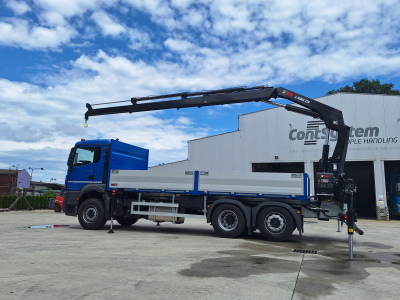

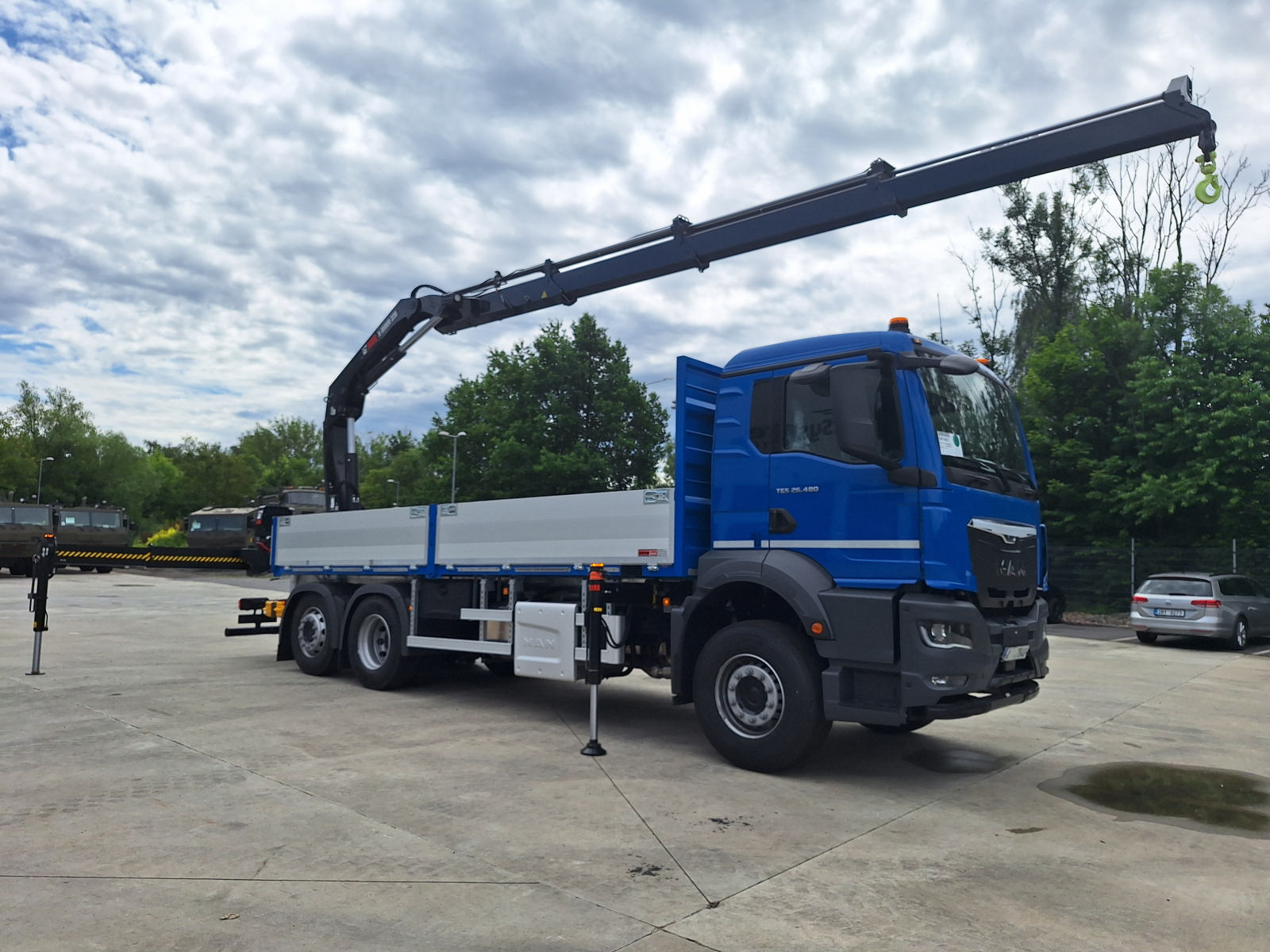

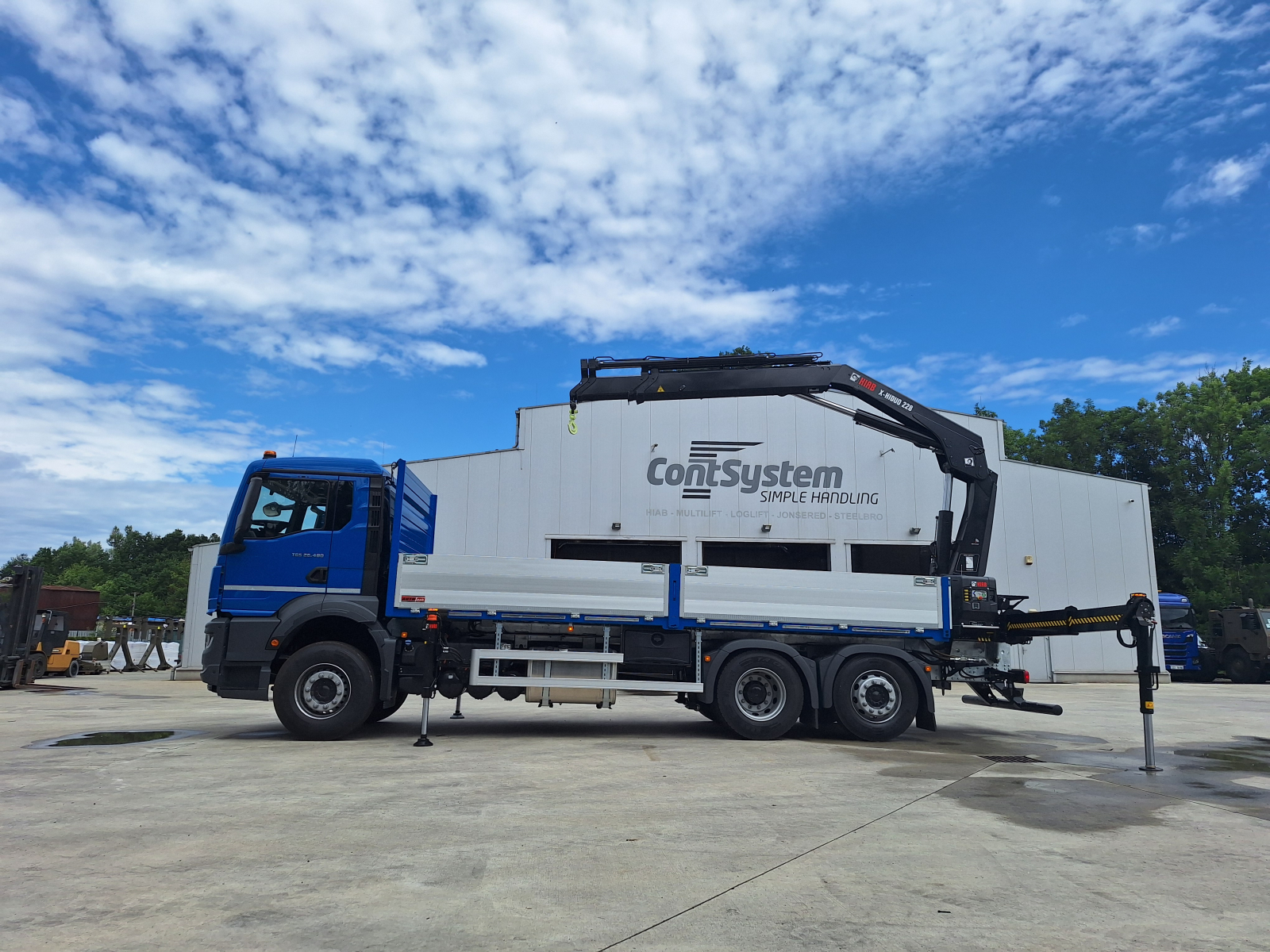

Introducing the newly delivered HIAB X-HIDUO 228 B-3 hydraulic crane with 3 hydraulic extensions mounted on a MAN chassis. The lifting moment reaches 18.2 tm. Thanks to three hydraulic extensions, the crane has a basic working range from 3.5 to 10.5 m. Remote control enables the crane operator to be close to the load and therefore has a perfect overview of the loading/unloading process.

Hydraulic loader crane HIAB X-HIDUO 228 B-3

• Control system: SPACE X4
• Control unit: remote control XS Drive with 6 functions (using the keyboard) and emergency control using levers on the switchboard
• Support span: 6.8 m
• At 3.5 meters, the crane has a capacity of 5.700 kg and at 10.5 meters it will lift a load of 1.780 kg
• Angle of rotation: 415 °
• Working pressure: 32.9 MPa

Electronic equipment - safety functions of the HIAB crane:

VSL variabil, SAF, ADC, OLP, ADO, ASC, CWI,  Signaling of unfolded stabilizer legs.
