26-ton MULTILIFT Ultima 26S.61 for a company engaged in the production and utilization of biomass
10.9.2024

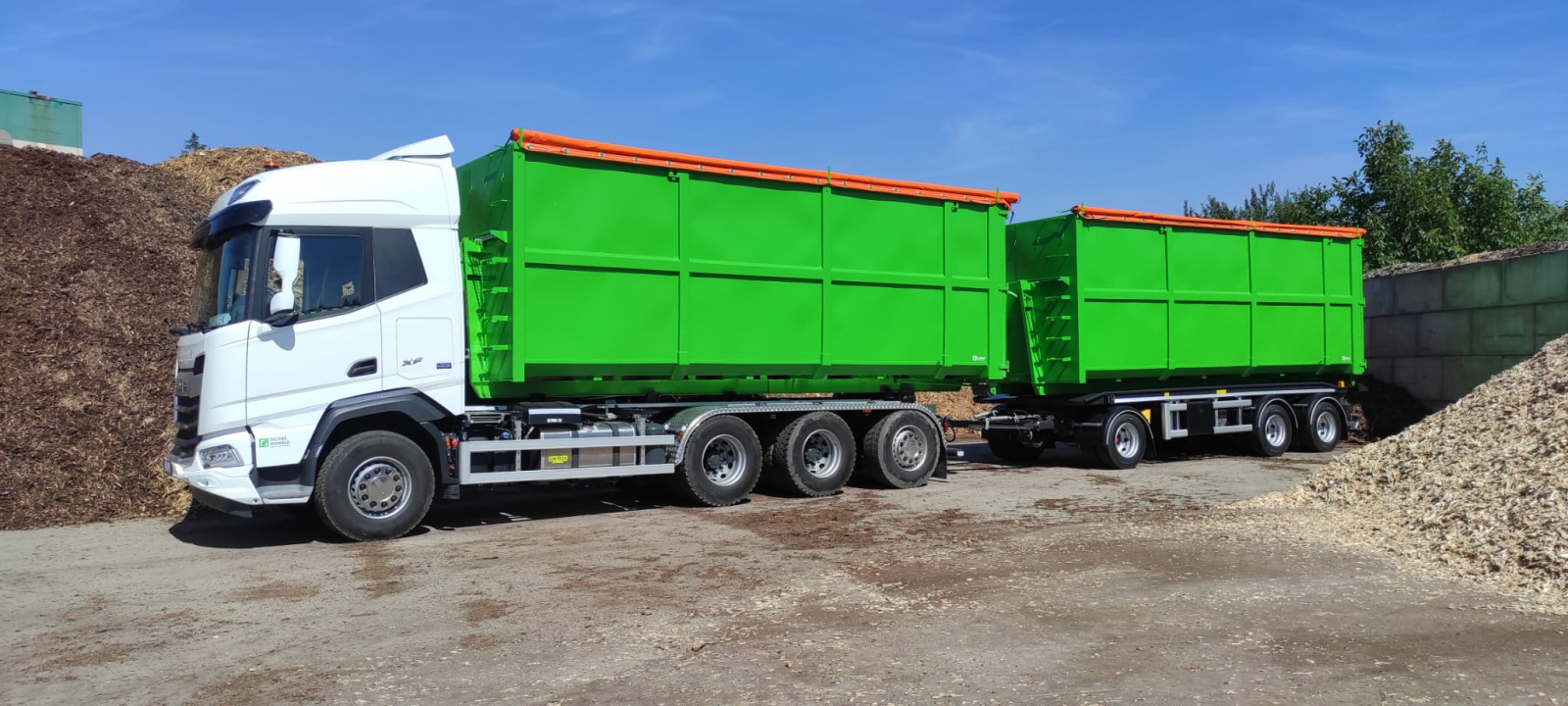

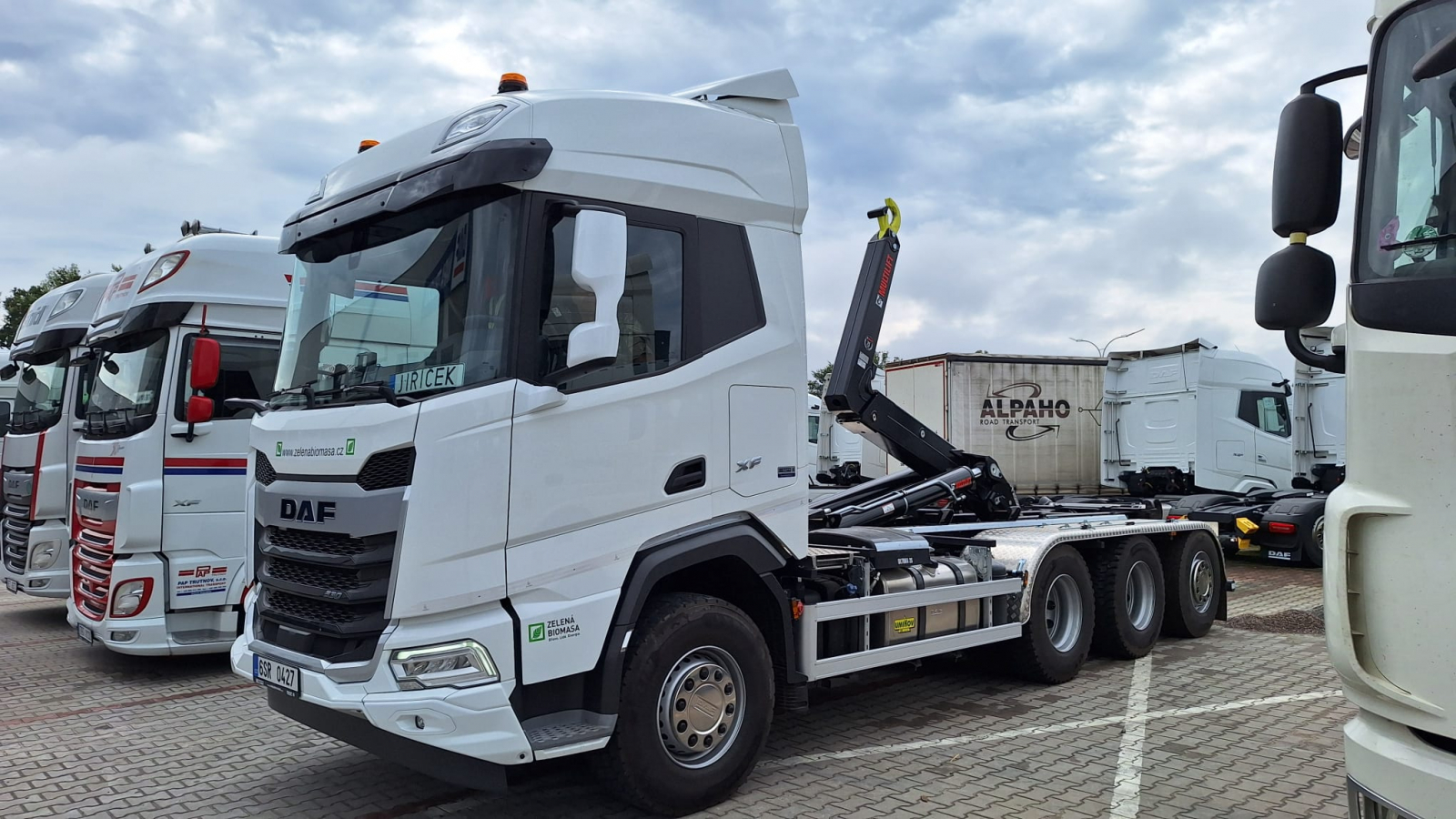

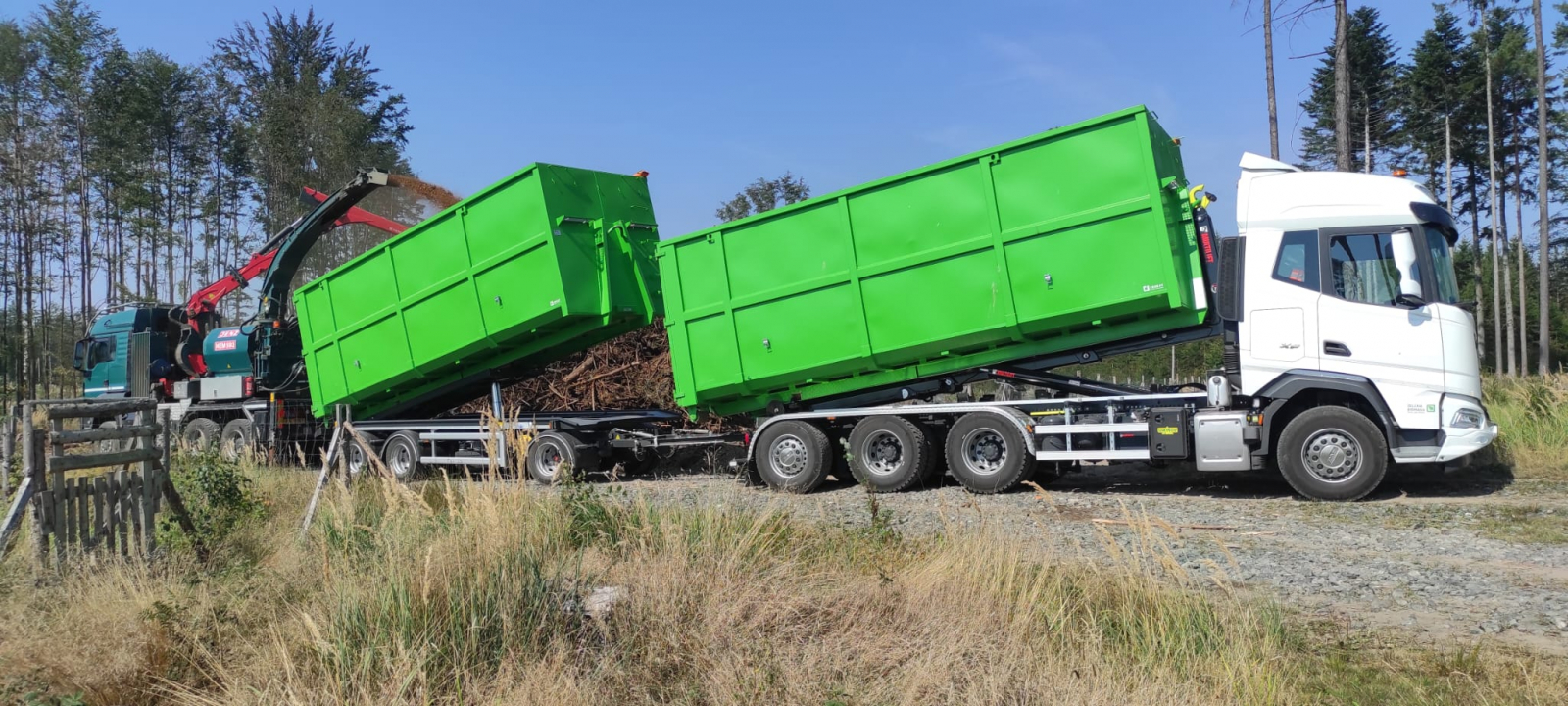

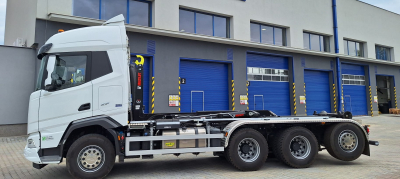

We have delivered this 26-ton MULTILIFT hook carrier with sliding hook mechanism S on DAF chassis, with tilting trailer for bulk containers, to a company engaged in the production and utilization of biomass.
Basic technical parameters of Multilift ULTIMA 26S.61
- Capacity 26 tons
- Hook height 1,570 mm
- This type of carrier is intended for containers with an internal length of 4.8 - 7.1 m
- Max. hookarm distance from roll axis 6,080 mm
- Tilting angle 49°
- Max. working pressure 30 MPa
- Installation height 270 mm
- Carrier weight 2,750 kg
- Hydraulic tank 150l
- Hydraulic pump SAP-108
- Horizontal displacement 1,450 mm
- Hydraulic outlet for trailer
- Control from the cabin using Joystick + emergency external control
Productivity-enhancing features:
- High speed function
- Friction Reduction function
- Automatic sequence control function etc.
