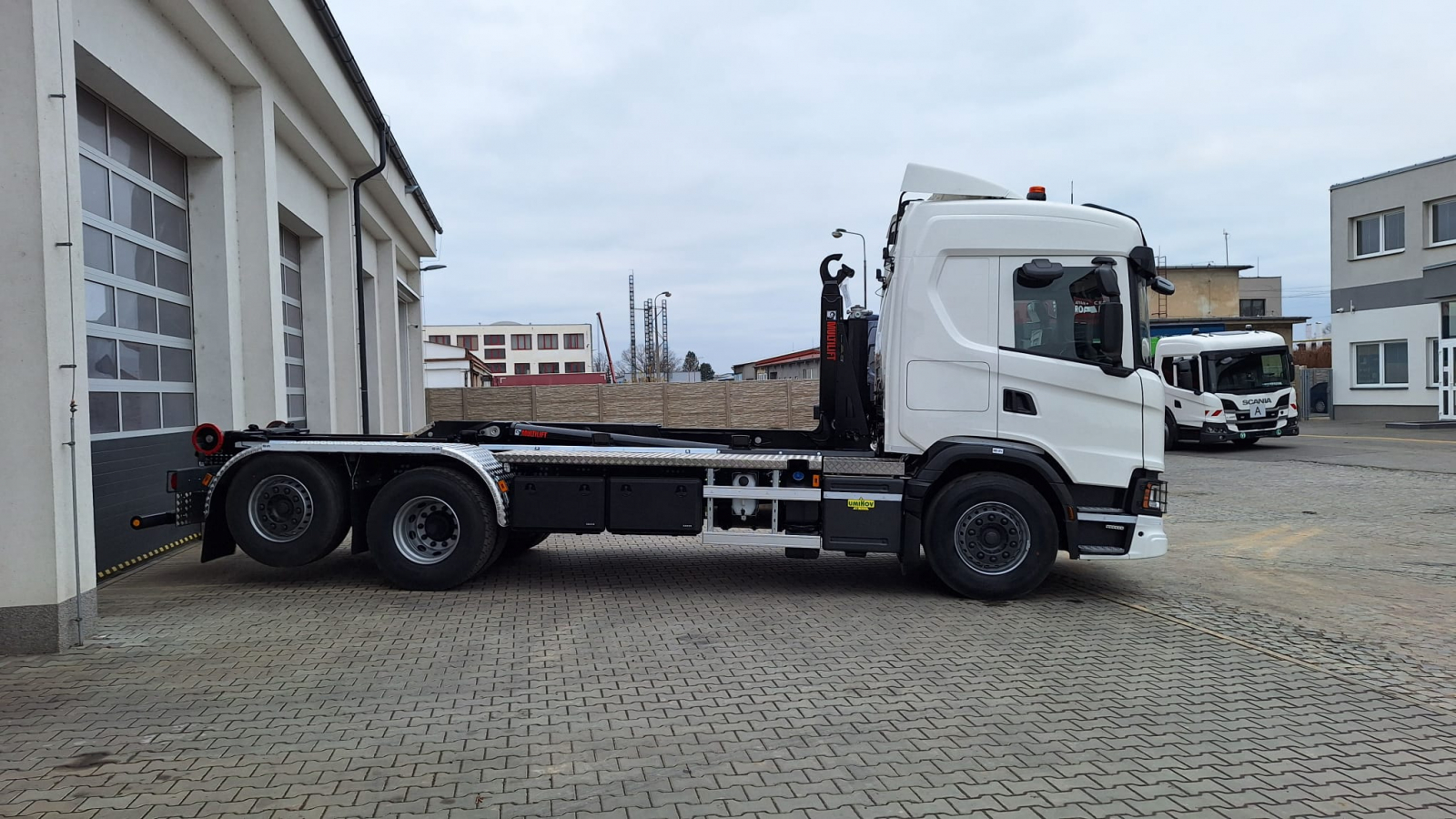

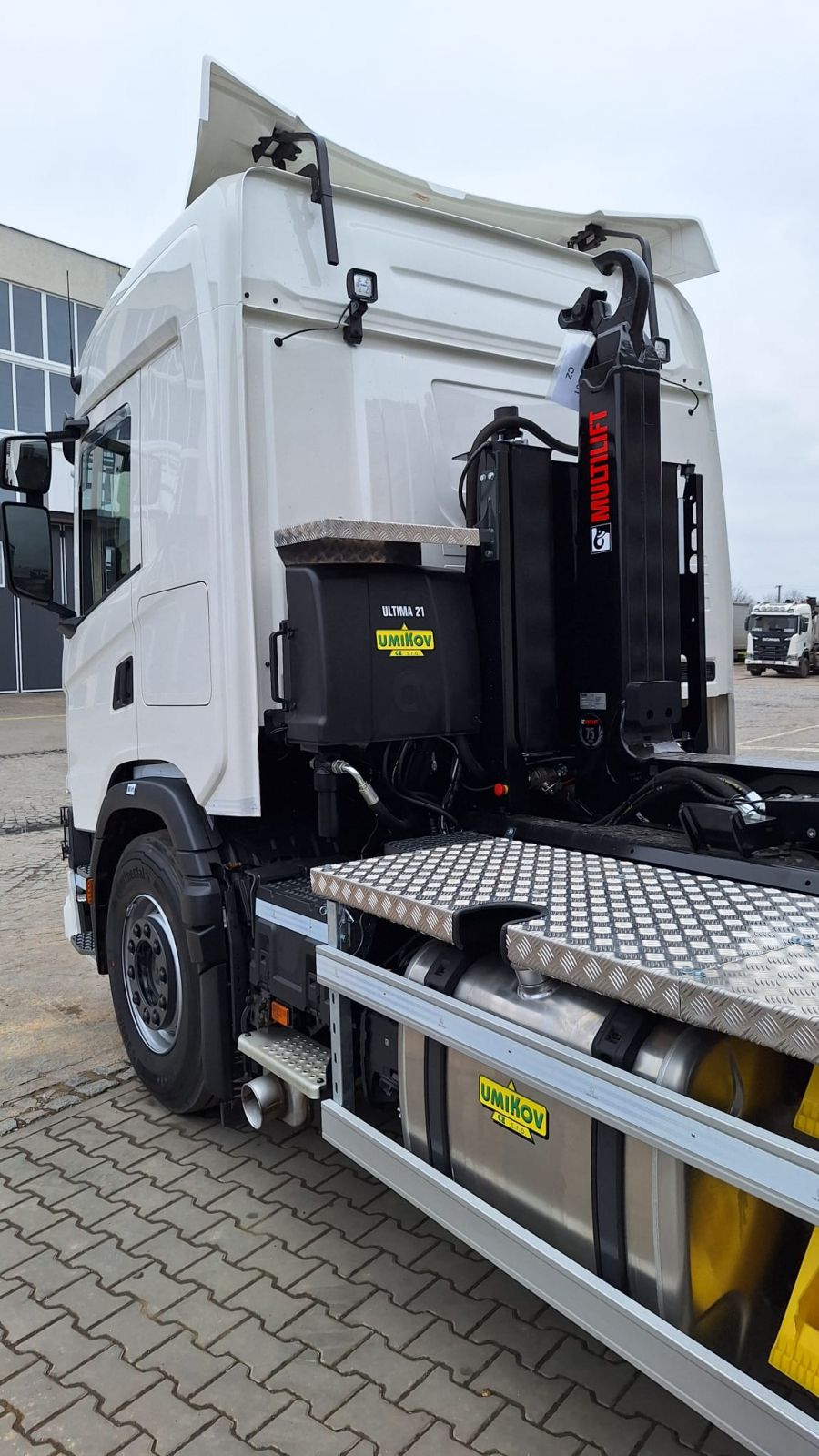

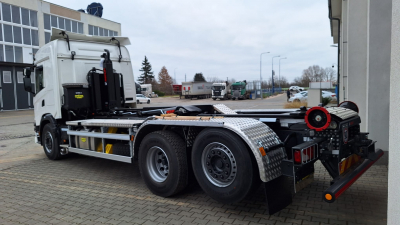

New MULTILIFT Ultima 21S.59 on SCANIA

Introducing the new MULTILIFT Ultima 21S.59 hooklift on SCANIA chassis. A lifting capacity of 21 tonnes and a hook height of 1,570 mm. The hooklift is controlled from the cabin with a joystick and is equipped with many automatic functions that speed up the loading cycle, increase safety and simplify handling of the carrier.

Basic technical data:

• Load capacity: 21 tons
• Container length inside: 4.6– 6.9 m
• Tilting angle: 53°
• Max. working pressure: 0 MPa
• Hooklift weight: 2,530 kg
• Hook height: 1,570 mm (H)
• Installation height: 250 mm (h)
• Max. distance of arm from roller axis: 5,860 mm (G)
• Horizontal displacement: 1,300 mm
