MULTILIFT ULTIMA 21 S.61 for the waste-recycling company TSR.

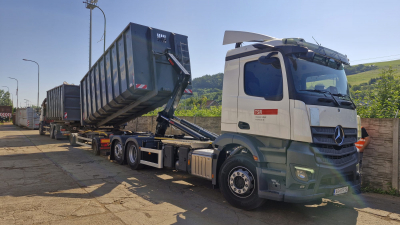

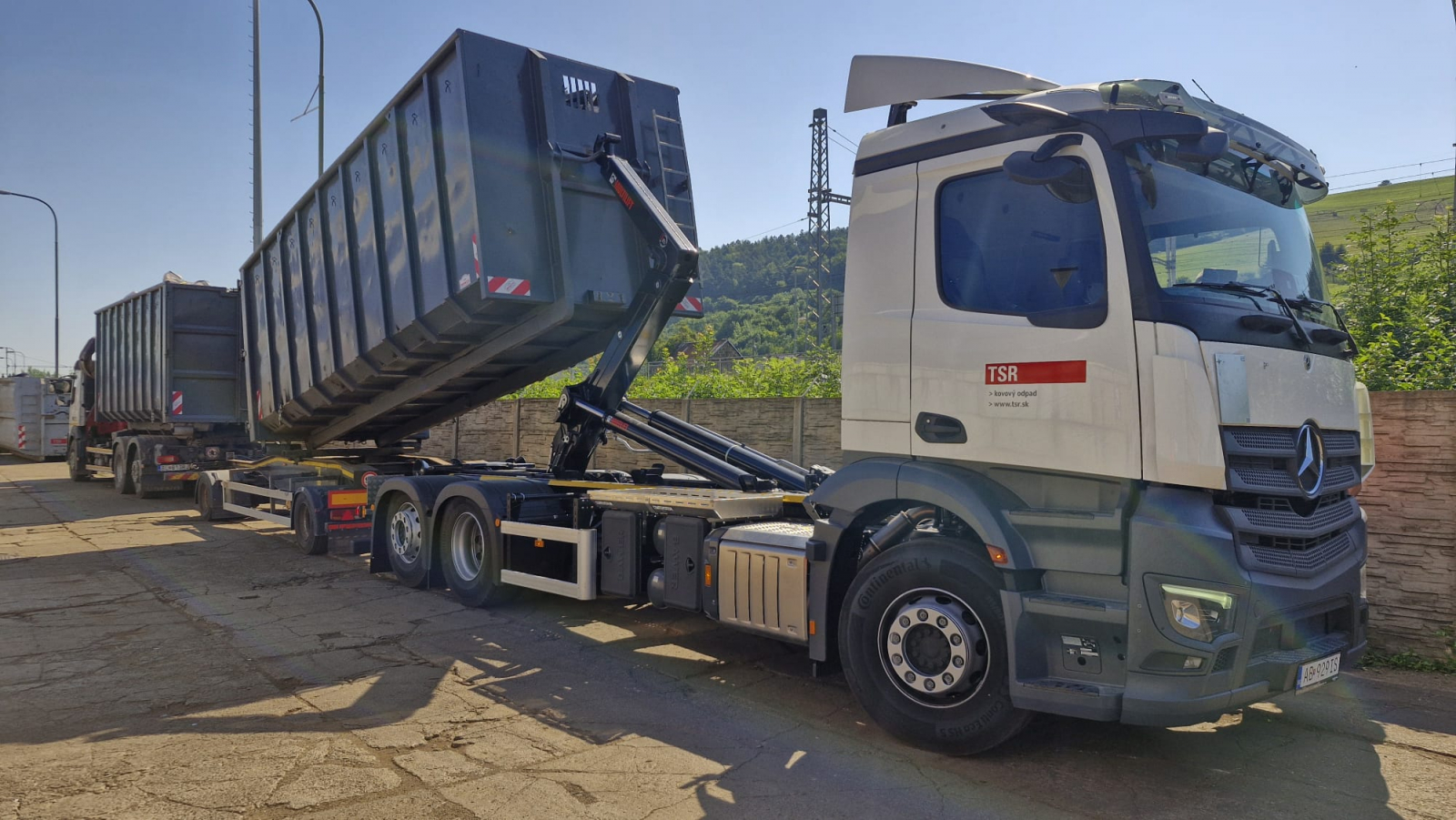

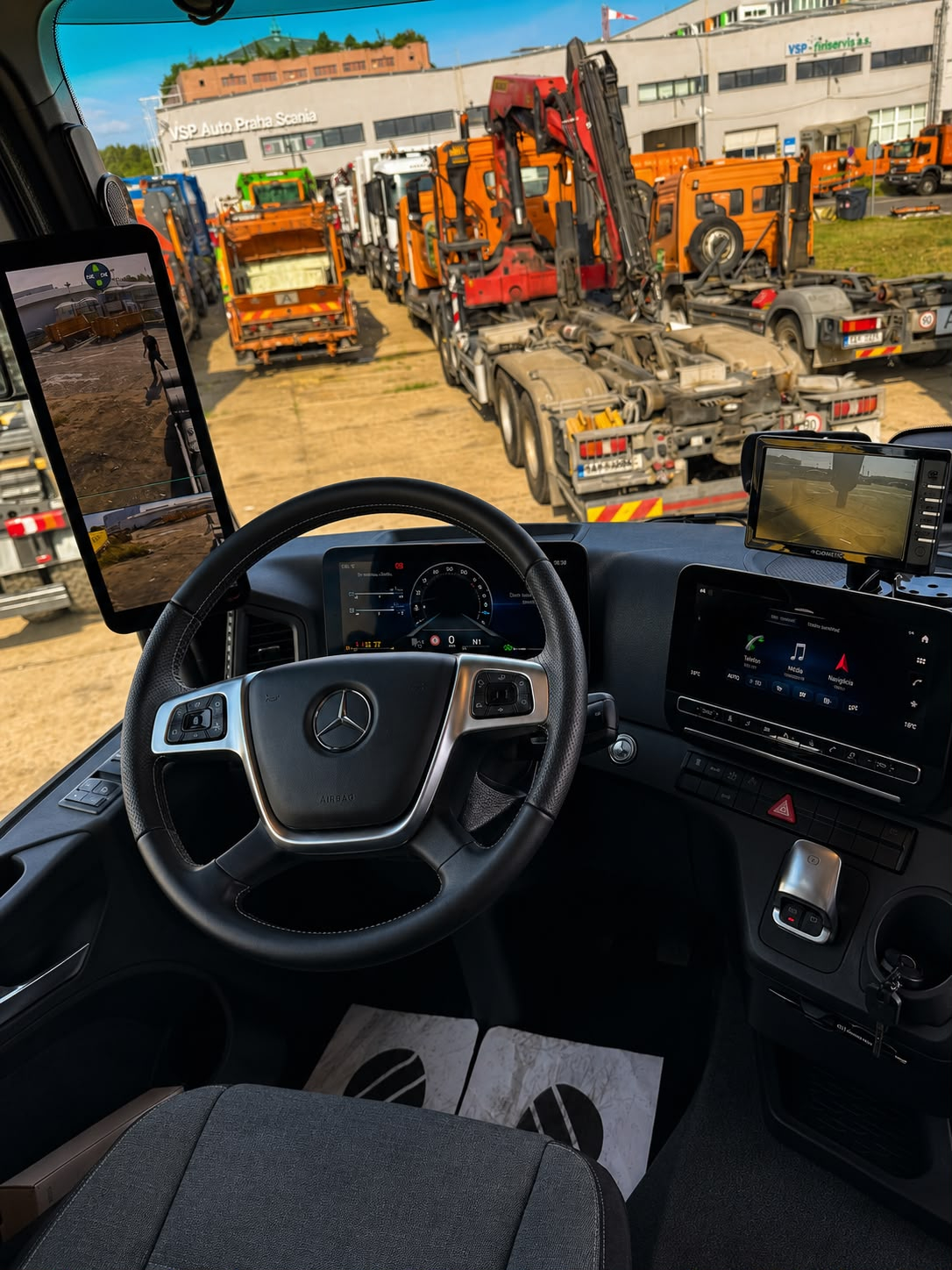

We are showcasing the completed supply and installation of a MULTILIFT ULTIMA 21 S.61 hooklift for the company TSR. The unit is operated from the cab via a joystick and also features an emergency external control system. The package included additional equipment such as a lubrication system, storage boxes, a spare wheel carrier, side underrun protection, and a double net basket.

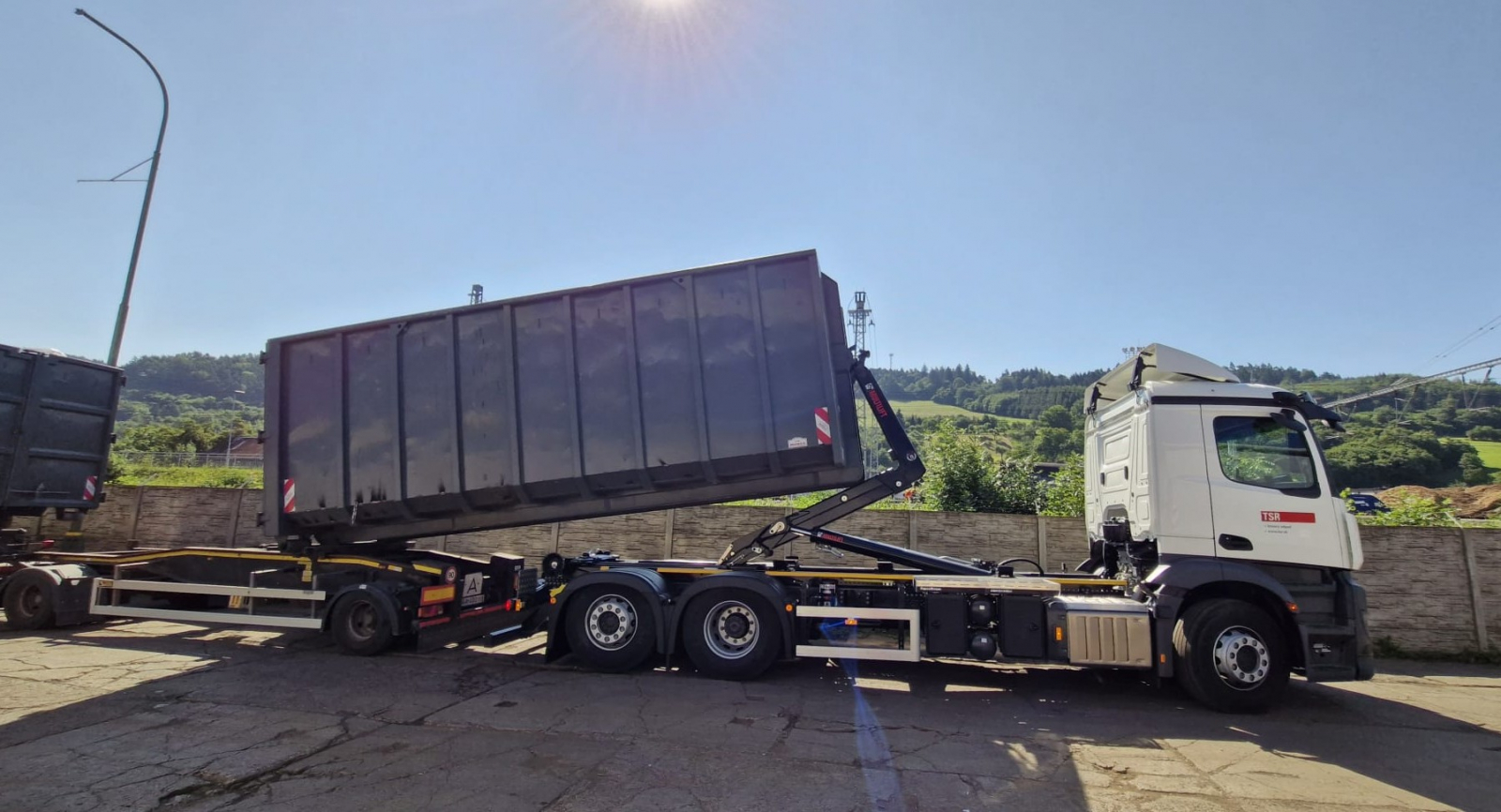

Automatic functions — such as sequential control and a rapid movement system for tipping and lowering — shorten work cycles, increase productivity, and ensure smoother operation of the entire system.

Technical specifications

• Lifting capacity: 21 t
• Container length: 4.8 – 7.1 m
• Tipping angle: 49°
• Max. working pressure: 30 MPa
• Unit weight: 2,550 kg
• Hook height: 1,570 mm (hook with automatic latch)
• Installation height: 250 mm
• Frame-mounted hydraulic tank: 150 l
• Hour meter
• Hydraulic rear locks
• Emergency stop button
• Audible warning signal during operation
